SS-39300 Series

Catalog

MODULAR CONNECTORS / ETHERNET CONNECTORS CAT 5E PUNCH DOWN PLUG UNSHIELDED 23-26 AWG

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Housing Material	Contact Finish	Connector Type	Color	Termination	Cable Type	Features	Shielding	Ratings	Length [x]	Length	Number of Positions/Contacts	Ingress Protection	Length

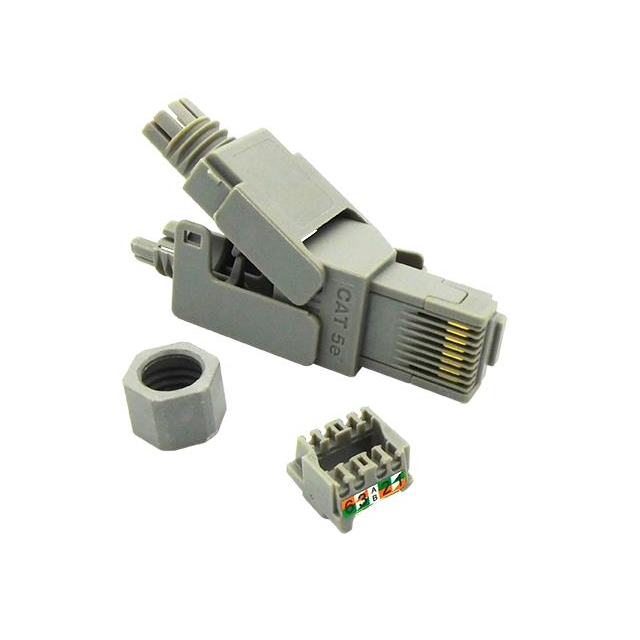

Bel Fuse Inc. SS-39300-013	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	23 AWG	Thermoplastic	Gold	Plug	Gray	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Unshielded	Cat5e	1.95 in	49.53 mm	8p8c (RJ45 Ethernet)

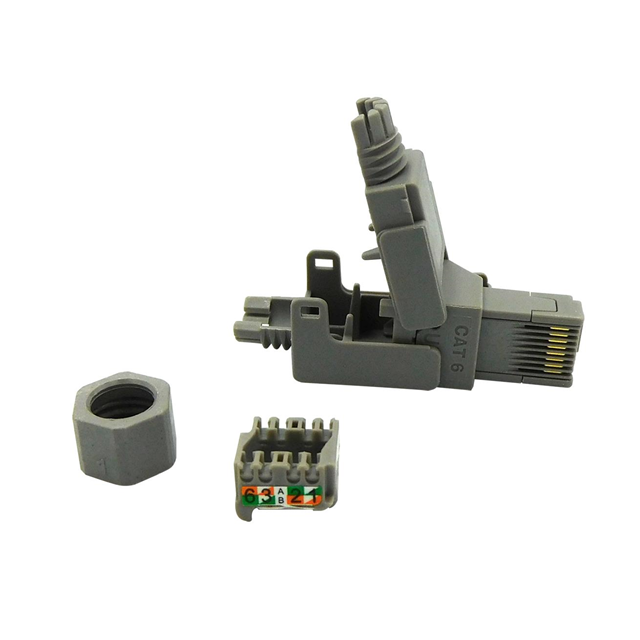

Bel Fuse Inc. SS-39300-014	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	23 AWG	Thermoplastic	Gold	Plug	Gray	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Unshielded	Cat6	1.95 in	49.53 mm	8p8c (RJ45 Ethernet)

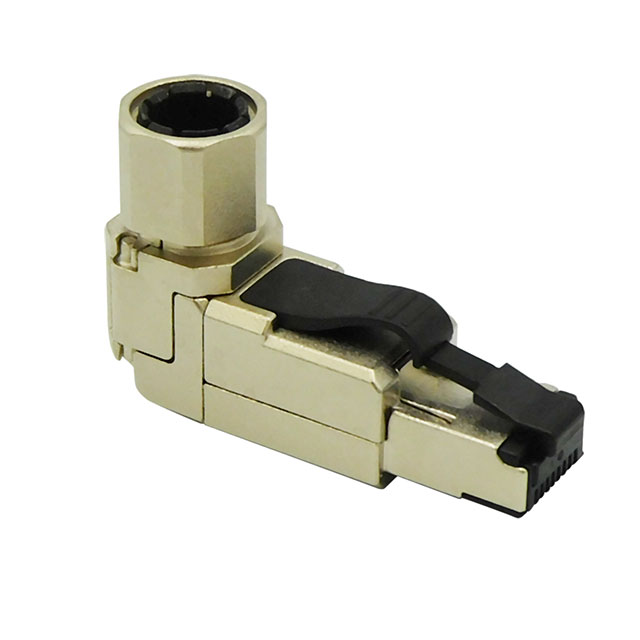

Bel Fuse Inc. SS-39300-004	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	22 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat6a			8p8c (RJ45 Ethernet)	IP20
Bel Fuse Inc. SS-39300-009	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	22 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat8.1		44.1 mm	8p8c (RJ45 Ethernet)		1.736 in

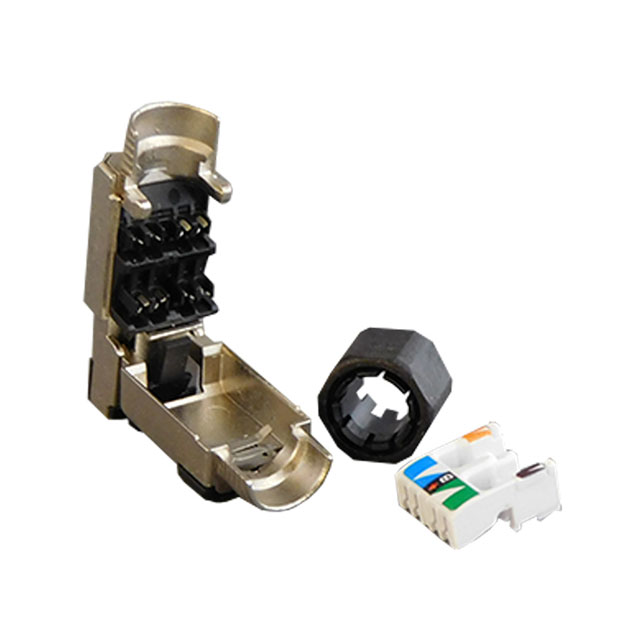

Bel Fuse Inc. SS-39300-002	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	23 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat6a		44.1 mm	8p8c (RJ45 Ethernet)	IP20	1.736 in
Bel Fuse Inc. SS-39300-003	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	22 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat6			8p8c (RJ45 Ethernet)	IP20
Bel Fuse Inc. SS-39300-010	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	22 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat8.1		44.1 mm	8p8c (RJ45 Ethernet)		1.736 in
Bel Fuse Inc. SS-39300-012	Phosphor Bronze Alloy	50 µin	1.27 µm	26 AWG	22 AWG	Zinc Alloy	Gold	Plug	Silver	IDC	Round Cable Solid or Stranded Wires	Strain Relief	Shielded	Cat8.1		44.1 mm	8p8c (RJ45 Ethernet)		1.736 in
