L6R65DM Series

Catalog

AC/DC DESKTOP ADAPTER 15V 65W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Output Connector [diameter]	Output Connector [x]	Region Utilized	Power (Watts)	Form	Standard Number	Cord Length	Cord Length	Polarization	No Load Power Consumption	Voltage - Output	Current - Output (Max) [Max]	Approval Agency	Efficiency	Applications	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Input Connector	Current - Output (Max)

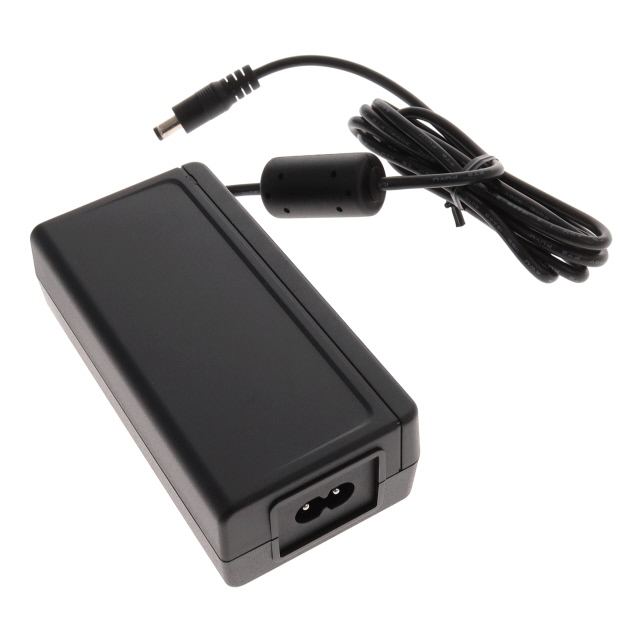

Tri-Mag, LLC L6R65DM-150-C8	264 VAC	90 VAC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	International	65 W	Desktop (Class II)	60601-1	1.5 m	59 in	Positive Center	150 mW	15 V	4.34 A	CE cULus EN FCC TUV	Level VI	Medical	Cord (Sold Separately)	36.1 mm	119.1 mm	2.36 "	59.9 mm	4.69 in	1.42 "	40 °C	IEC 320-C8

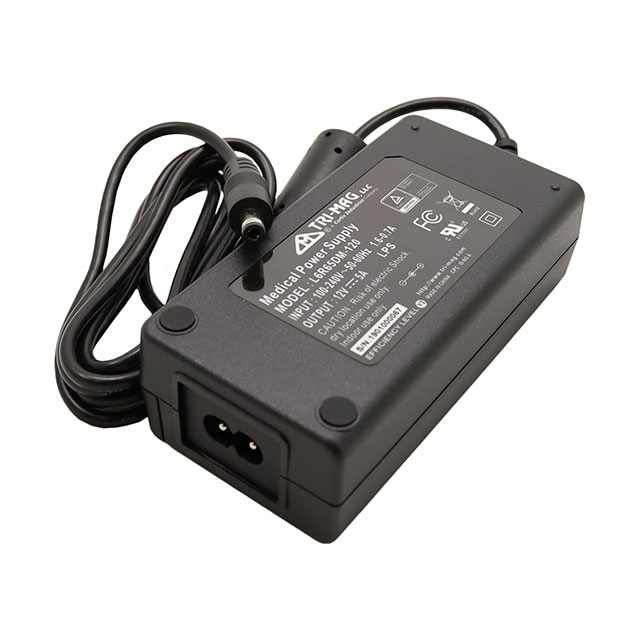

Tri-Mag, LLC L6R65DM-120-C8	264 VAC	90 VAC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	International	60 W	Desktop (Class II)	60601-1	1.5 m	59 in	Positive Center	150 mW	12 V		CE cULus EN FCC TUV	Level VI	Medical	Cord (Sold Separately)	36.1 mm	119.1 mm	2.36 "	59.9 mm	4.69 in	1.42 "	40 °C	IEC 320-C8	5 A

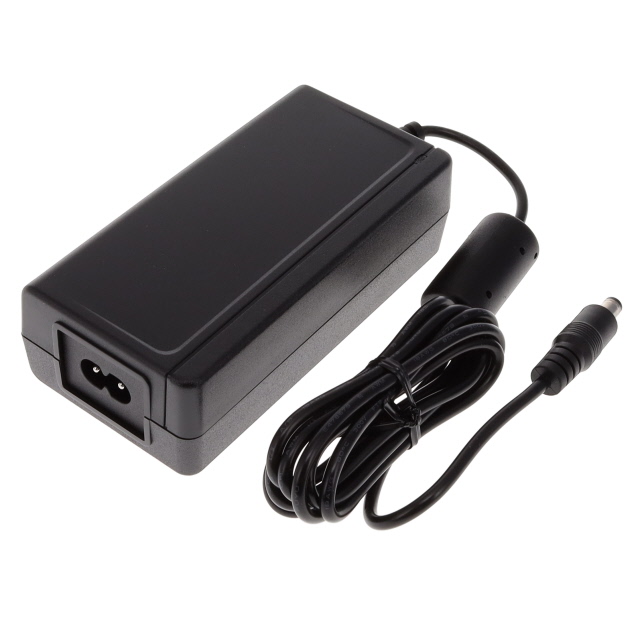

Tri-Mag, LLC L6R65DM-240-C8	264 VAC	90 VAC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	International	65 W	Desktop (Class II)	60601-1	1.5 m	59 in		150 mW	24 V	2.71 A	CE cULus EN FCC TUV	Level VI	Medical	Cord (Sold Separately)	36.1 mm	119.1 mm	2.36 "	59.9 mm	4.69 in	1.42 "	40 °C	IEC 320-C8
