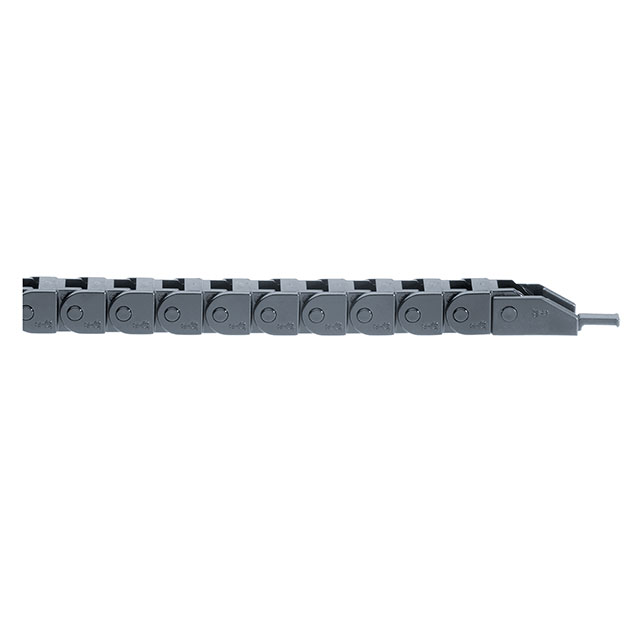

Z08-16 Series

Manufacturer: Igus

Catalog

CABLE CARRIER .76H X .95W 1=1FT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Loading Side	Outer Height [z]	Outer Height [z]	Frame Type	Outer Width	Outer Width	Cavity Width	Cavity Width	Minimum Bend Radius [Min]	Minimum Bend Radius [Min] [radius]	Cavity Height	Cavity Height	Link Pitch	Link Pitch	Material	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]
Igus Z08-16-028-0	80 °C	-40 C	Inside and Outside Bend	19.3 mm	0.76 in	Open	24.13 mm	0.95 in	0.63 in	16 mm	27.94 mm	1.1 "	14.48 mm	0.57 in	0.79 in	20.07 mm	Igumid G
Igus Z08-16-048-0	80 °C	-40 C	Inside and Outside Bend	19.3 mm	0.76 in	Open	24.13 mm	0.95 in	0.63 in	16 mm			14.48 mm	0.57 in	0.79 in	20.07 mm	Igumid G	48.01 mm	1.89 "
