16SVP Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM POLY 150UF 20% 16V SMD

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance	Package / Case	Type	Lifetime @ Temp.	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)
Panasonic Electronic Components 16SVP150M	3.02 A	8 mm	0.315 in	General Purpose	0.394 in	10 mm	151 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	150 µF	30 mOhms	-55 C	105 ░C
Panasonic Electronic Components 16SVP39M	1.62 A		0.236 "	General Purpose	0.248 "	6.3 mm	81 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.26 in	0.26 in	6.6 mm	6.6 mm	Surface Mount	39 µF	50 mOhms	-55 C	105 ░C	6 mm
Panasonic Electronic Components 16SVP82M	2.12 A	7 mm	0.276 in	General Purpose	0.315 in	8 mm	106 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.327 in	0.327 in	8.3 mm	8.3 mm	Surface Mount	0.082 mF	40 mOhm	-55 C	105 ░C
Panasonic Electronic Components 16SVP100M	2.67 A	8 mm	0.315 in	General Purpose	0.394 in	10 mm	133.5 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	100 µF	35 mOhms	-55 C	105 ░C
Panasonic Electronic Components 16SVP3R3M	660 mA	5.5 mm	0.217 "	General Purpose	0.157 in	4 mm	33 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.169 in	0.169 "	4.3 mm	4.3 mm	Surface Mount	3.3 µF	260 mOhms	-55 C	105 ░C
Panasonic Electronic Components 16SVP56M	1.89 A	7 mm	0.276 in	General Purpose	0.315 in	8 mm	94.5 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.327 in	0.327 in	8.3 mm	8.3 mm	Surface Mount	56 µF	45 mOhm	-55 C	105 ░C
Panasonic Electronic Components 16SVP15M	1.02 A		0.236 "	General Purpose	0.197 in	5 mm	51 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs			0.209 in 5.3 mm	0.209 in 5.3 mm	Surface Mount	15 µF	120 mOhm	-55 C	105 ░C	6 mm

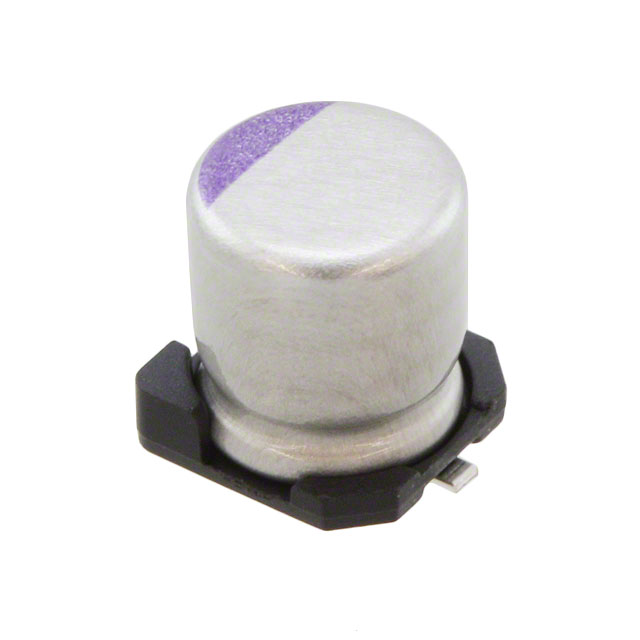

Panasonic Electronic Components 16SVP22M	1.06 A		0.236 "	General Purpose	0.197 in	5 mm	53 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs			0.209 in 5.3 mm	0.209 in 5.3 mm	Surface Mount	22 µF	90 mOhm	-55 C	105 ░C	6 mm
Panasonic Electronic Components 16SVP330M	4.72 A	12.7 mm	0.5 in	General Purpose	0.394 in	10 mm	236 mA	16 V	20 %	Radial Can - SMD	Polymer	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	Surface Mount	330 µF	16 mOhm	-55 C	105 ░C
