171-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

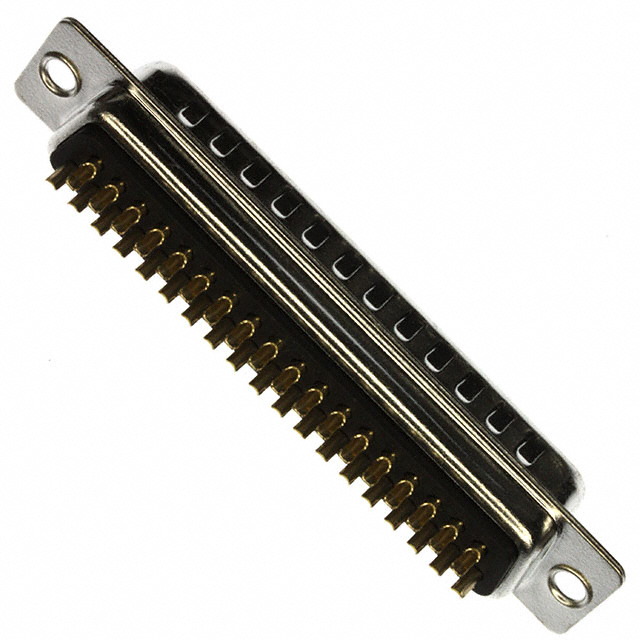

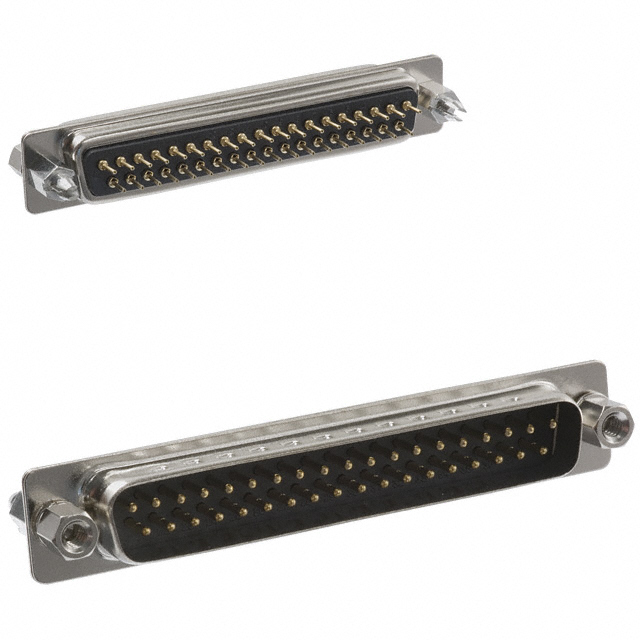

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 171 SERIES, STEEL BODY
| Part | Color | Contact Form | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination | Contact Finish | Connector Type | Connector Style | Mounting Type | Number of Rows [custom] | Features | Flange Feature | Number of Positions | Contact Type | Contact Finish Thickness | Current Rating (Amps) | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Stamped | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Brass | Solder | Gold | Plug Male Pins | D-Sub | Panel Mount Through Hole | 2 | Board Lock Grounding Indents | Board Side (4-40) Mating Side Female Screwlock (4-40) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | Nickel Plated Steel | |||||
 NorComp Inc. | Black | Stamped | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Brass | Solder | Gold | Receptacle Female Sockets | D-Sub | Panel Mount Through Hole | 2 | Board Lock | Board Side (4-40) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | Nickel Plated Steel | 500 V | ||||
 NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | 100 °C | -50 °C | Copper Alloy | Gold | Plug Male Pins | D-Sub | Panel Mount | 2 | Grounding Indents | Cable Side (4-40) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | Nickel Plated Steel | 28 AWG | 19.5 AWG | ||||
 NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Gold | Receptacle Female Sockets | D-Sub | Panel Mount | 2 | Housing/Shell (Unthreaded) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | 28 AWG | 19.5 AWG | |||||||
 NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | 100 °C | -50 °C | Copper Alloy | Gold | Plug Male Pins | D-Sub | Panel Mount | 2 | Grounding Indents | Housing/Shell (Unthreaded) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | 28 AWG | 19.5 AWG | |||||
 NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Gold | Receptacle Female Sockets | D-Sub | Panel Mount | 2 | 4-40 | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | 28 AWG | 19.5 AWG | Yellow Chromate Plated Zinc | Steel | |||||
NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Solder | Gold | Receptacle Female Sockets | D-Sub | Panel Mount Through Hole | 2 | Board Side (4-40) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | ||||||||
NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Gold | Plug Male Pins | D-Sub | Panel Mount | 2 | Grounding Indents | 4-40 | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | 28 AWG | 19.5 AWG | ||||||
NorComp Inc. | Black | Stamped | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Solder | Gold | Plug Male Pins | D-Sub | Panel Mount Through Hole | 2 | Grounding Indents | Housing/Shell (Unthreaded) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | |||||||
NorComp Inc. | Black | Stamped | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Brass | Solder | Gold | Plug Male Pins | D-Sub | Panel Mount Through Hole | 2 | Board Lock Grounding Indents | Board Side (4-40) | 37 | Signal | Flash | 5 A | UL94 V-0 | 4 | DC C | Nickel Plated Steel | 500 V |
