1565035 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

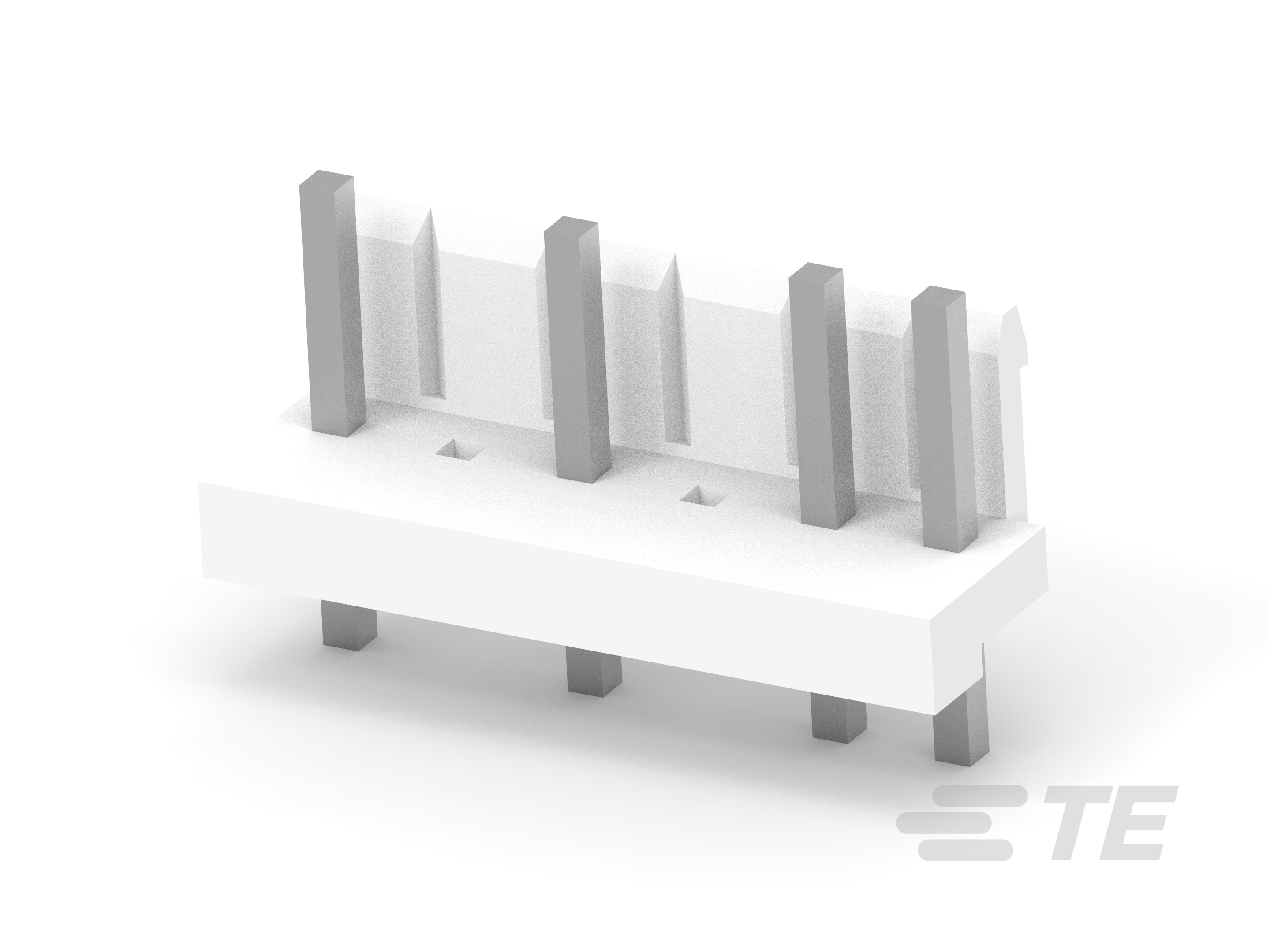

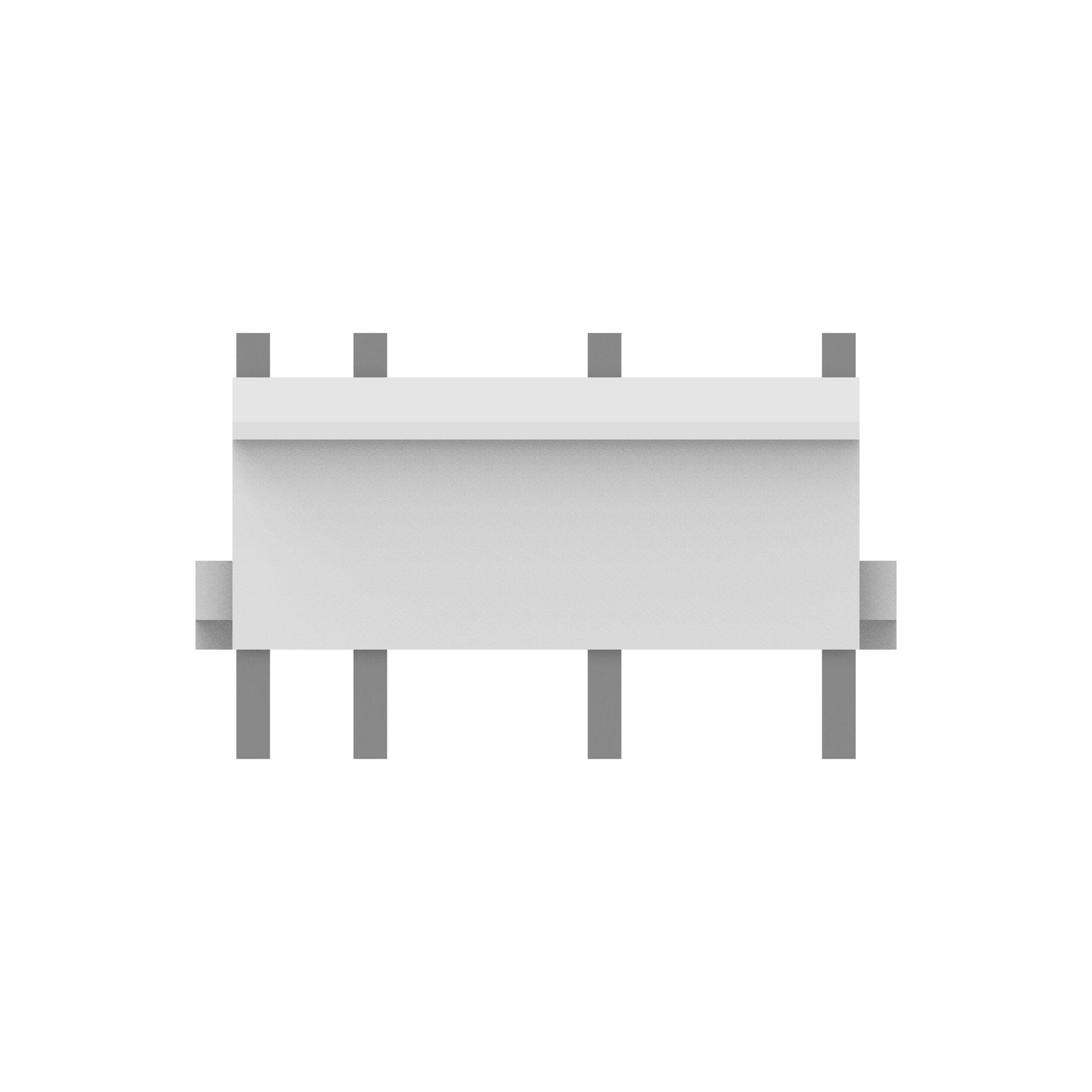

EP CONN HDR ASSY 4/6P SPECIAL
| Part | Number of Rows | Material Flammability Rating | Contact Shape | Style | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Color | Insulation Height | Insulation Height | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Finish - Post | Voltage Rating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Shrouding | Contact Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Insulation Material | Fastening Type | Number of Positions Loaded | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | UL94 V-0 | Square | Board to Cable/Wire | 0.156 in | 3.96 mm | 6 | Natural | 0.362 in | 9.2 mm | 14.4 mm | 0.567 " | 7.7 mm | 0.303 in | Through Hole | Tin | 600 VAC | 8 A | 0.146 in | 3.7 mm | Shrouded - 1 Wall | Male Pin | Header | 105 ░C | -55 °C | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Locking Ramp | All | Brass |
