887-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

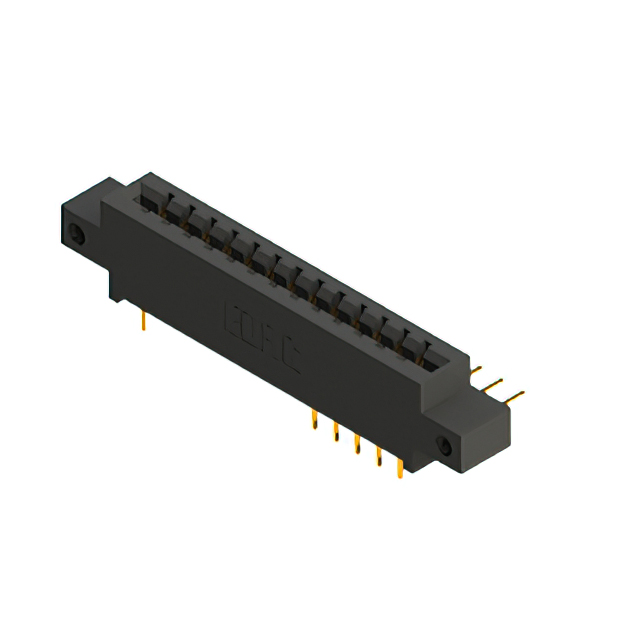

CONN EDGE DUAL FMALE 26POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Termination | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Contact Finish | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Contact Type | Contact Material | Color | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Pitch | Pitch | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.25 Ám | 10 Áin | 26 | Gold | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Single | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | 26 | Gold | Non Specified - Single Edge | 0.128 " | 3.25 mm | Single | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | 1 | 1 | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 2 | 0.25 Ám | 10 Áin | 13 | Gold | Non Specified - Dual Edge | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Dual | Cantilever | Copper Alloy | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 3.96 mm | 0.156 in | 26 | 125 °C | -40 C | Female |
