093628 Series
Manufacturer: Molex
Beta
⌘K

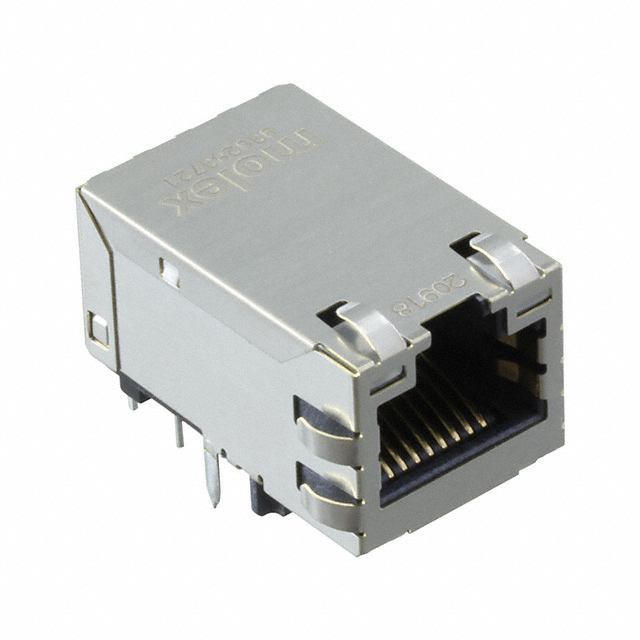

CONN JACK 1PORT 1000 BASE-T PCB
| Part | Contact Finish | Connector Type | Tab Direction | LED Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Orientation | Housing Material | Number of Cores per Jack | Applications | Shield Material | Termination | Mounting Type | Features | Shielding | Number of Rows | Contact Material | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Gold | RJ45 | Up | Green - Green | 70 °C | 0 °C | 1 | 90 ° | Liquid Crystal Polymer (LCP) | 8 | 10/100/1000 Base-T AutoMDIX | Brass Nickel Coated | Solder | Through Hole | Board Guide | Shielded EMI Finger | 1 | Phosphor Bronze | 14.1 mm | 0.555 in |
