845-090 Series
Manufacturer: EDAC Inc.
Catalog

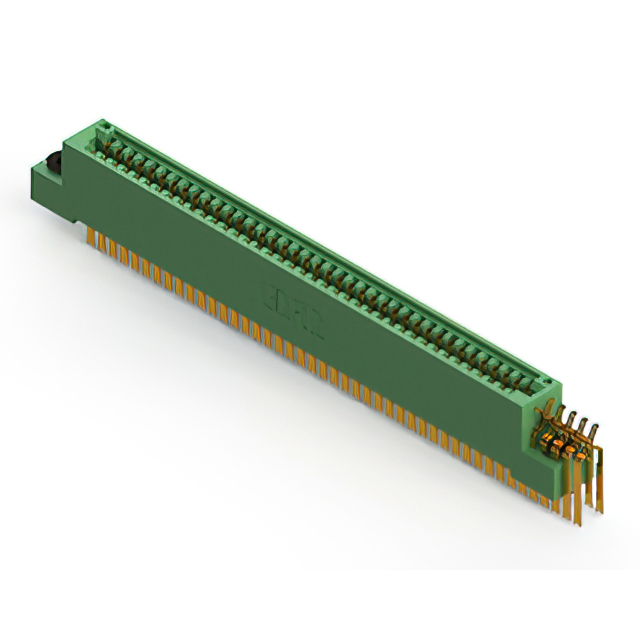

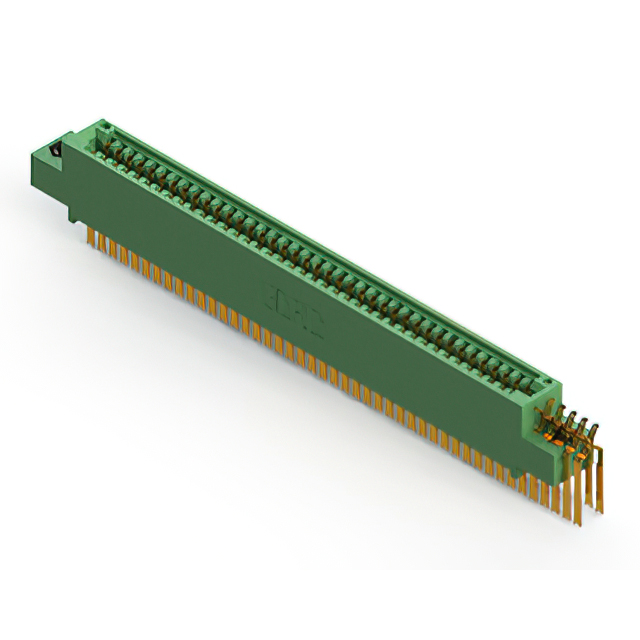

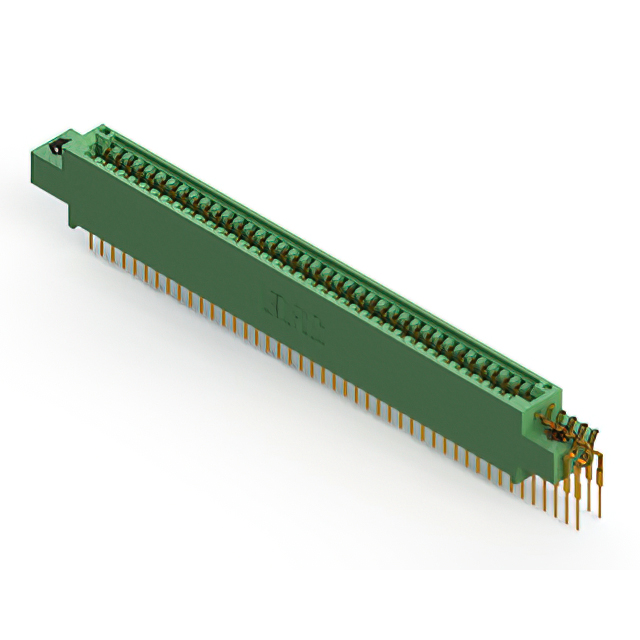

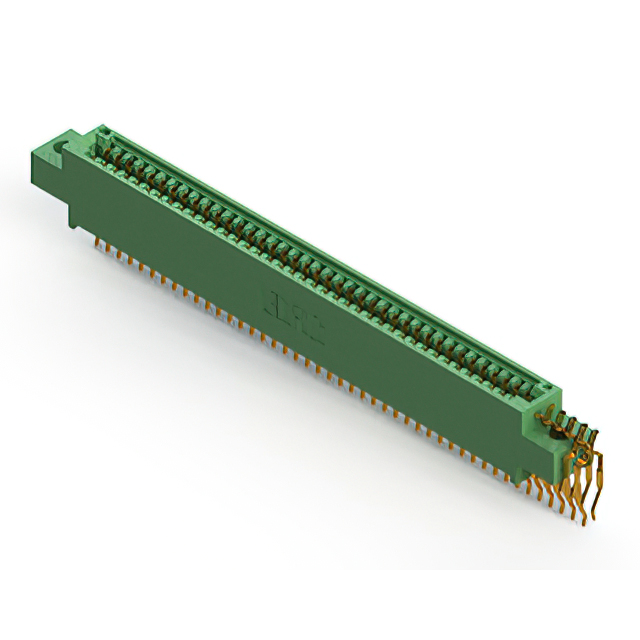

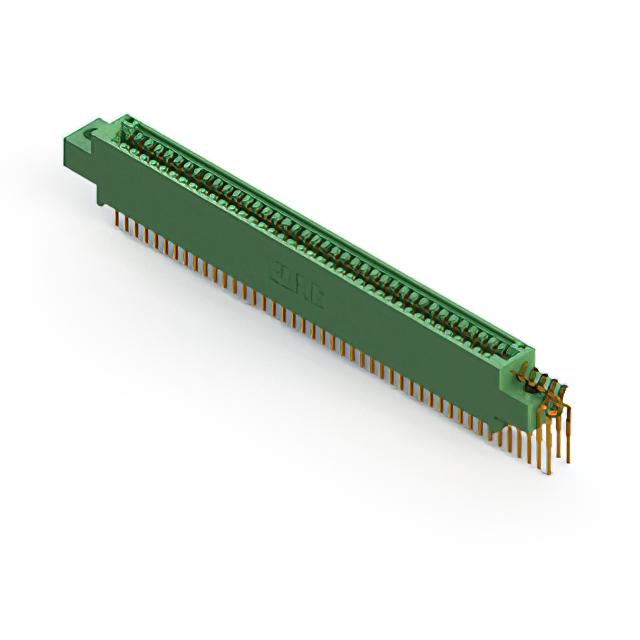

CONN EDGE DUAL FMALE 90POS 0.100
...
| Part | Contact Material | Pitch | Pitch | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Read Out | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions/Bay/Row | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Card Type | Termination Rows [custom] | Gender | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 90 | Through Hole | 125 °C | -40 C | Solder Eyelet(s) | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.156 " | 3.96 mm | 90 | Right Angle Through Hole | 125 °C | -40 C | Solder | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | ||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.156 " | 3.96 mm | 90 | Through Hole | 125 °C | -40 C | Wire Wrap | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | ||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 4-40 Threaded Insert Top Mount Opening | 90 | Through Hole | 125 °C | -40 C | Solder | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | M3 Threaded Insert Top Mount Opening | 90 | Through Hole | 125 °C | -40 C | Solder Eyelet(s) | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 90 | Through Hole | 125 °C | -40 C | Wire Wrap | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | M3 Threaded Insert Top Mount Opening | 90 | Through Hole | 125 °C | -40 C | Solder Eyelet(s) | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.156 " | 3.96 mm | 90 | Board Edge Straddle Mount | 125 °C | -40 C | Solder | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | Card Extender | |
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 4-40 Threaded Insert Top Mount Opening | 90 | Through Hole | 125 °C | -40 C | Solder | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 | |||
 EDAC Inc. | Copper Alloy | 0.1 " | 2.54 mm | Green | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Dual | Cantilever | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 90 | Through Hole | 125 °C | -40 C | Wire Wrap | 45 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 2 | Female | 2 |
