PDS1-S3 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 1W

Part	Approval Agency	Package / Case	Type	Applications	Features	Standard Number	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Current - Output (Max) [Min]	Current - Output (Max)
CUI Inc. PDS1-S3-S5-M	EN UL	8-SMD Module 5 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032 Class A 60950-1	2.97 V	1	5 V	105 C	-40 °C	74 %	Surface Mount	3.63 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	1.5 kV
CUI Inc. PDS1-S3-S3-M	EN	8-SMD Module 5 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032	2.97 V	1	3.3 V	105 C	-40 °C	69 %	Surface Mount	3.63 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	1.5 kV	303 mA

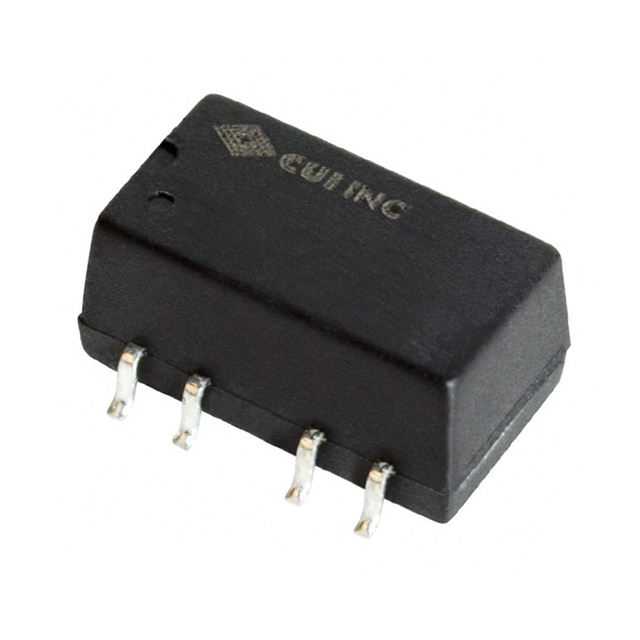

CUI Inc. PDS1-S3-D15-M-TR	EN	10-SMD Module 6 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032	2.97 V	2	15 V	105 C	-40 °C	78 %	Surface Mount	3.63 V	15.2 mm				8.3 mm	7.3 mm	1.5 kV	33 mA	0.29 in	0.33 "	0.6 "	-15 V	33 mA
CUI Inc. PDS1-S3-S3-M-TR	EN	8-SMD Module 5 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032	2.97 V	1	3.3 V	105 C	-40 °C	72 %	Surface Mount	3.63 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	1.5 kV	303 mA
CUI Inc. PDS1-S3-D15-M	EN	10-SMD Module 6 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032	2.97 V	2	15 V	105 C	-40 °C	78 %	Surface Mount	3.63 V	15.2 mm				8.3 mm	7.3 mm	1.5 kV	33 mA	0.29 in	0.33 "	0.6 "	-15 V	33 mA

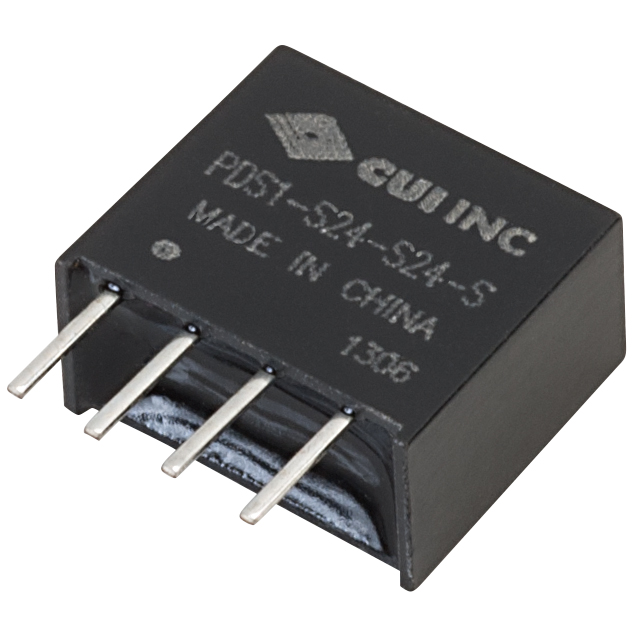

CUI Inc. PDS1-S3-S5-S	CB Scheme EN IEC UL	4-SIP Module	Isolated Module	ITE (Commercial)	SCP	55024 55032 Class A 60950-1	2.97 V	1	5 V	105 C	-40 °C	80 %	Through Hole	3.63 V	11.6 mm				6 mm	10.2 mm	1.5 kV	200 mA	0.4 "	0.24 "	0.46 in
CUI Inc. PDS1-S3-S5-M-TR	EN UL	8-SMD Module 5 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032 Class A 60950-1	2.97 V	1	5 V	105 C	-40 °C	74 %	Surface Mount	3.63 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	1.5 kV	200 mA
CUI Inc. PDS1-S3-D12-M-TR	EN	10-SMD Module 6 Leads	Isolated Module	ITE (Commercial)	SCP	55024 55032	2.97 V	2	12 V	105 C	-40 °C	78 %	Surface Mount	3.63 V	15.2 mm				8.3 mm	7.3 mm	1.5 kV		0.29 in	0.33 "	0.6 "	-12 V		42 mA
CUI Inc. PDS1-S3-S3-S		4-SIP Module	Isolated Module	ITE (Commercial)	SCP		2.97 V	1	3.3 V	105 C	-40 °C	80 %	Through Hole	3.63 V	11.6 mm				6 mm	10.2 mm	1.5 kV	303 mA	0.4 "	0.24 "	0.46 in
CUI Inc. PDS1-S3-S5-D		7-DIP Module 4 Leads	Isolated Module	ITE (Commercial)	SCP		2.97 V	1	5 V	105 ░C	-40 C	80 %	Through Hole	3.63 V	12.8 mm				10 mm	7.7 mm	1.5 kV	200 mA	0.3 in	0.39 in	0.5 "
