KHB1748 Series
Manufacturer: Delta Electronics
Beta
⌘K

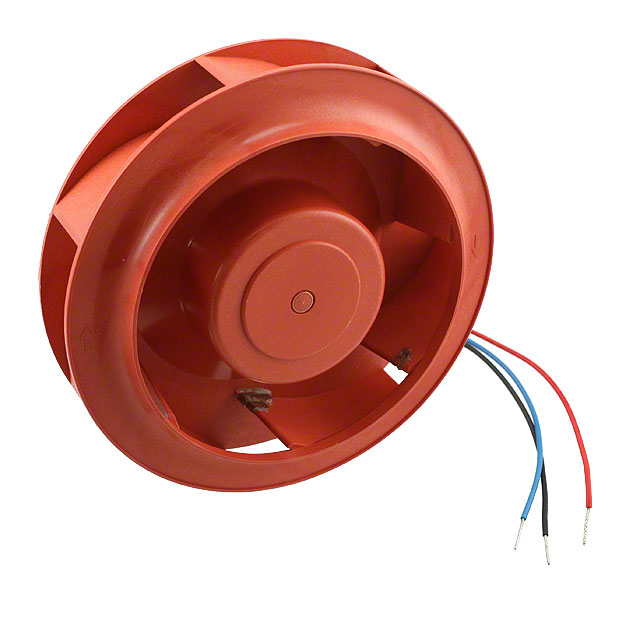

FAN IMP MTRZD 175X54MM 48VDC
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Material - Frame | Weight | Weight | RPM | Termination | Fan Type | Power (Watts) | Width [y] | Approval Agency | Voltage - Rated | Air Flow | Air Flow | Bearing Type | Static Pressure | Static Pressure | Features | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 80 VDC | 32 VDC | Plastic | 650 mA | Aluminum | 635 g | 1.4 lbs | 3500 RPM | 3 Wire Leads | Motorized Impellers | 31.2 W | 54 mm | CE CSA UL VDE | 48 VDC | 247.5 CFM | 6.93 m³/min | Ball | 398.8 Pa | 1.601 in H2O | Speed Sensor (Tach) | Round | 175 mm |
