8bit 4ch D/A converter
| Part | Supplier Device Package | Package / Case | Package / Case | Architecture | Differential Output | Data Interface | Mounting Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Bits | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of D/A Converters | INL/DNL (LSB) | Settling Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 14-SSOP-B | 0.173 " 4.4 mm | 14-LSSOP | R-2R | SPI | Surface Mount | 5.5 V | 2.7 V | 8 | Voltage - Buffered | 85 °C | -20 C | 2.7 V | 5.5 V | 4 | 1 LSB 1.5 LSB | 100 µs |

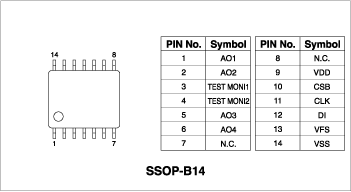

Description
AI
The BH2227FV and BH2228FV ICs are 8bit R-2R-type D / A converters with 4 and 6 channels, respectively. Optimized circuitry allows two output voltages to be supplied (3V / 5V). Furthermore, the built-in RESET function ensures that the output voltage at all channels is Low during power up. A broad power supply voltage range is available (2.7V to 5.5V), providing design flexibility.
