RP188 Series

Catalog

LINE FILTER 250VAC 6A CHASSIS

Part	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Current	Termination Style	Mounting Type	Applications	Approval Agency	Configuration
Astrodyne TDI RP188HSN-6-1-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	6 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage

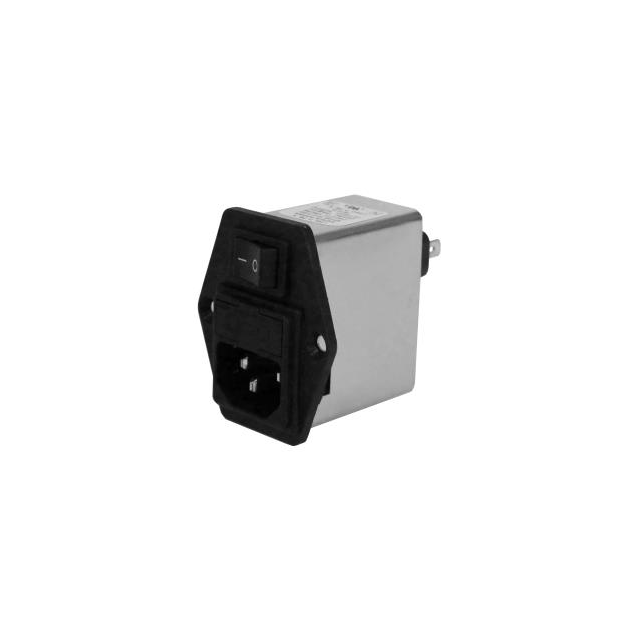

Astrodyne TDI RP188-3-0-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	3 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-3-.47-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	3 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188HSN-6-.47-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	6 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-10-0-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	10 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188HSN-10-2.2-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	10 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-3-4.7-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	3 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-3-1-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	3 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-10-2.2-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	10 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
Astrodyne TDI RP188-10-4.7-QD	Single Phase	100 °C	-25 °C	60 Hz	50 Hz	250 V	10 A	IEC 320-C14 Quick Connect	Chassis Mount	General Purpose	CE CSA cURus SEMKO	Single Stage
