R14327 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

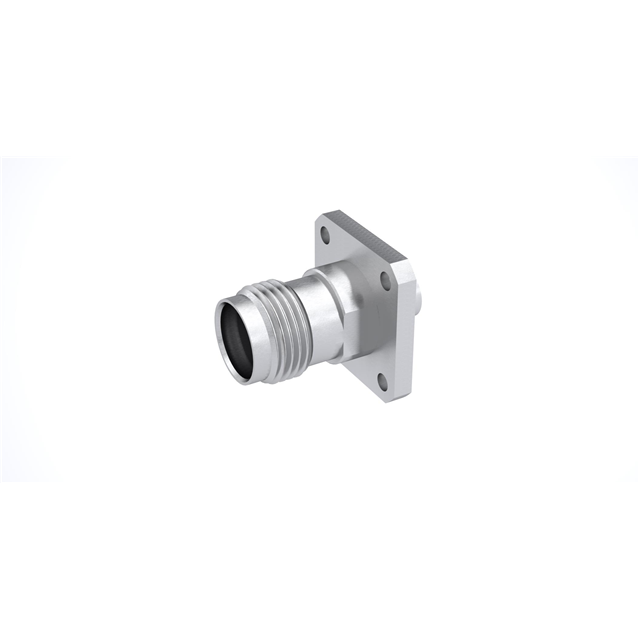

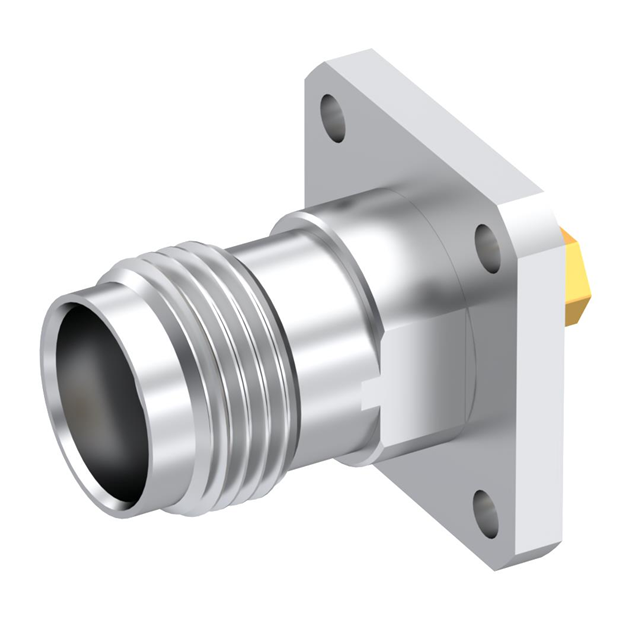

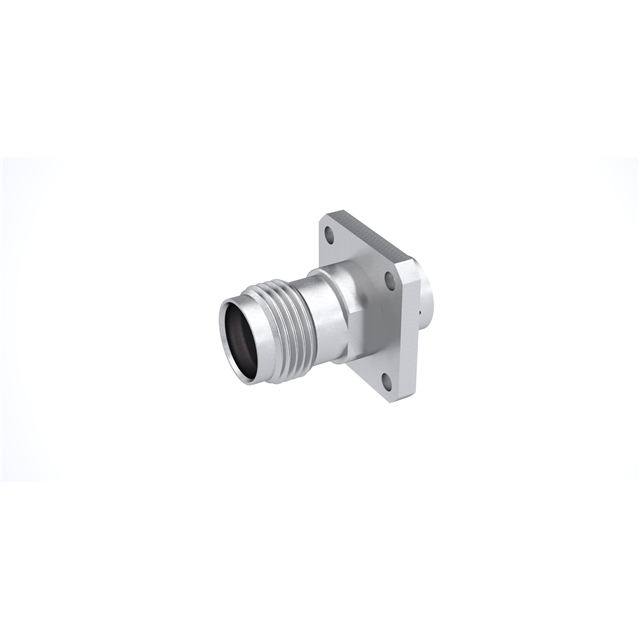

TNC 18 / STRAIGHT SQUARE FLANGE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Voltage Rating | Center Contact Plating | Insertion Loss | Mating Cycles | Center Contact Material | Connector Type | Connector Style | Cable Group | Shield Termination | Contact Termination | Housing Color | Mounting Type | Mounting Feature | Frequency - Max [Max] | Number of Ports | Impedance | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 335 V | Gold | 0.18 dB | 500 | Beryllium Copper | Female Socket Jack | TNC | RG-405 (.085" Semi Rigid) | Solder | Solder | Silver | Panel Mount | Flange | 18 GHz | 1 | 50 Ohms | Threaded |
 Radiall USA, Inc. | -65 ░C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | Gold | 0.18 dB | 500 | Bronze | Female Socket Jack | TNC | Solder | Solder | Silver | Panel Mount | Flange | 18 GHz | 1 | 50 Ohms | Threaded | |
 Radiall USA, Inc. | -65 ░C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | Gold | 0.18 dB | 500 | Bronze | Female Socket Jack | TNC | RG-401 (.250" Semi Rigid) | Solder | Solder | Silver | Panel Mount | Flange | 18 GHz | 1 | 50 Ohms | Threaded |
