ERM02A Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

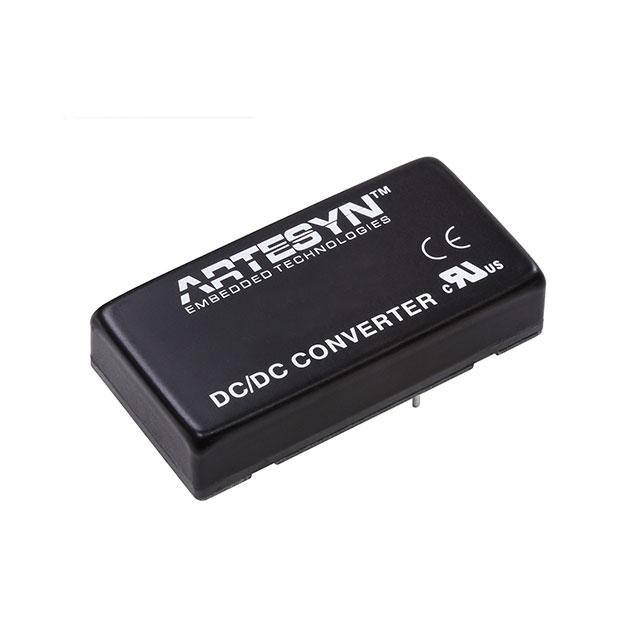

DC DC CONVERTER 5V 10W
| Part | Efficiency | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Isolation | Features | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Number of Outputs | Mounting Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 84 % | 10 W | 36 V | 3000 V | OCP OTP OVP | 9 V | 2 A | 5 V | 1 | Through Hole | ITE (Commercial) Railway | -40 °C | 85 °C | Isolated Module | 1 " | 0.43 in | 50.8 mm | 25.4 mm | 2 in | 11 mm | 6-DIP Module |
ARTESYN / Advanced Energy | 10 W | 160 V | 3000 V | OCP OTP OVP | 40 V | 2 A | 5 V | 1 | Through Hole | ITE (Commercial) Railway | -40 °C | 85 °C | Isolated Module | 1 " | 0.43 in | 50.8 mm | 25.4 mm | 2 in | 11 mm | 6-DIP Module |
