430052 Series

Catalog

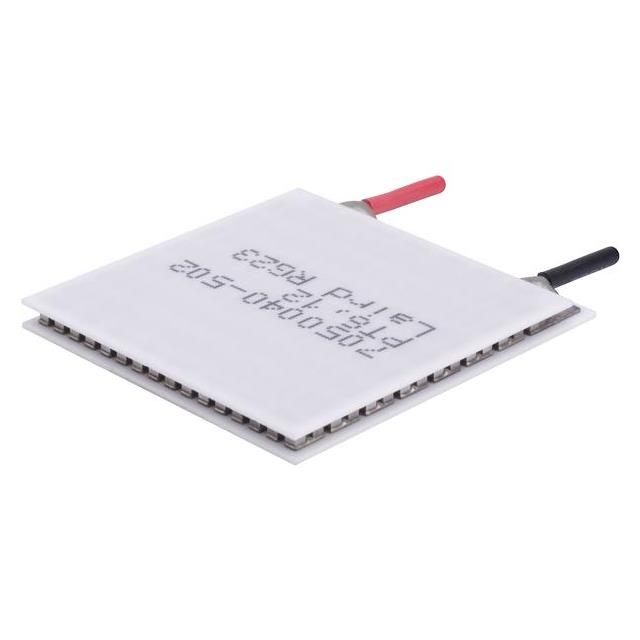

PELTIER MOD 43.9X39.9X3.63MM 6A

Part	Current - Max [Max]	Number of Stages	Qmax @ Th	Height [z]	Operating Temperature	Features	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Resistance	Delta Tmax @ Th
Laird Thermal Systems, Inc. 430052-505	6 A	1	52.3 W	3.63 mm	80 °C	Lead Wires Sealed - Epoxy	39.9 mm	43.9 mm	14.5 V	2.19 Ohms	65 °C
Laird Thermal Systems, Inc. 430052-501	6 A	1	52.2 W	3.63 mm	80 °C	Lead Wires Non-Sealed	39.9 mm	43.9 mm	14.5 V	2.19 Ohms	65 °C
