828801 Series

Catalog

CONN HEADER R/A 6POS 5MM

Part	Contact Type	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions	Insulation Material	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Features	Mounting Type	Contact Shape	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Post	Insulation Color
TE Connectivity AMP Connectors 828801-2	Tab	Brass	0.138 in	3.5 mm	19 mm	0.748 in	0.197 "	5 mm	All	UL94 V-2	0.197 in	5 mm	Plug	6	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	Solder	9.3 mm	0.366 in	Mounting Flange	Right Angle Through Hole	Rectangular	Board to Cable/Wire	-55 C	105 ░C	2	Tin	Black

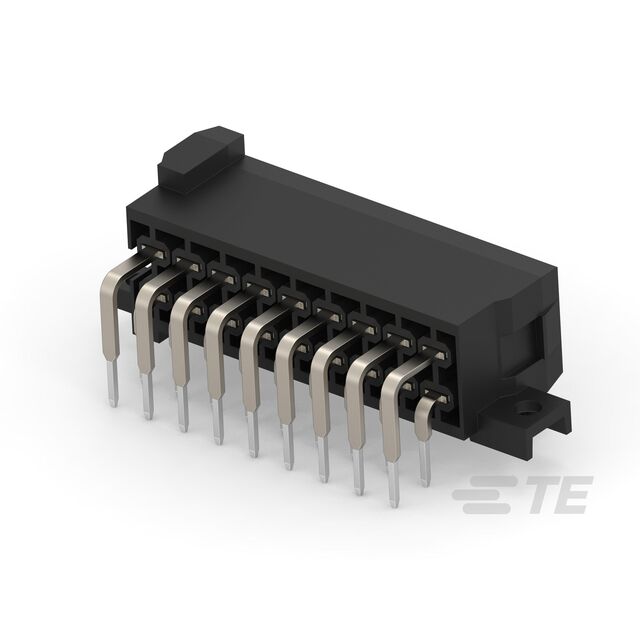

TE Connectivity AMP Connectors 828801-6	Tab	Brass	0.138 in	3.5 mm	19 mm	0.748 in	0.197 "	5 mm	All	UL94 V-2	0.197 in	5 mm	Plug	18	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	Solder	9.3 mm	0.366 in	Mounting Flange	Right Angle Through Hole	Rectangular	Board to Cable/Wire	-55 C	105 ░C	2	Tin	Black
