887-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

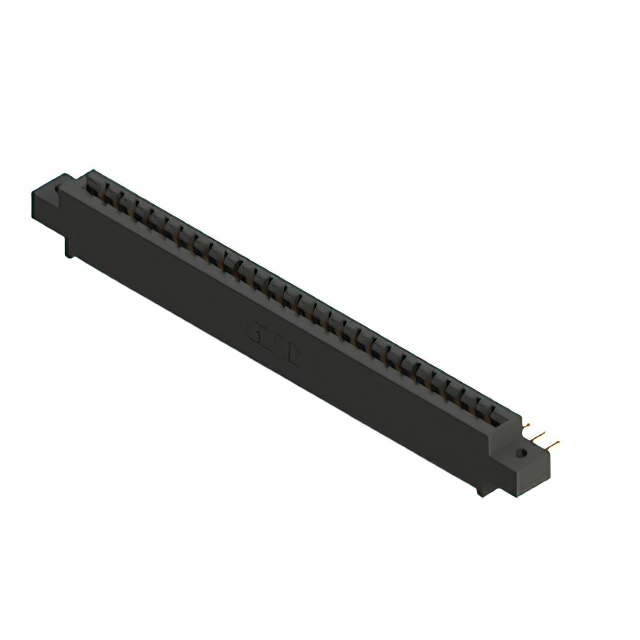

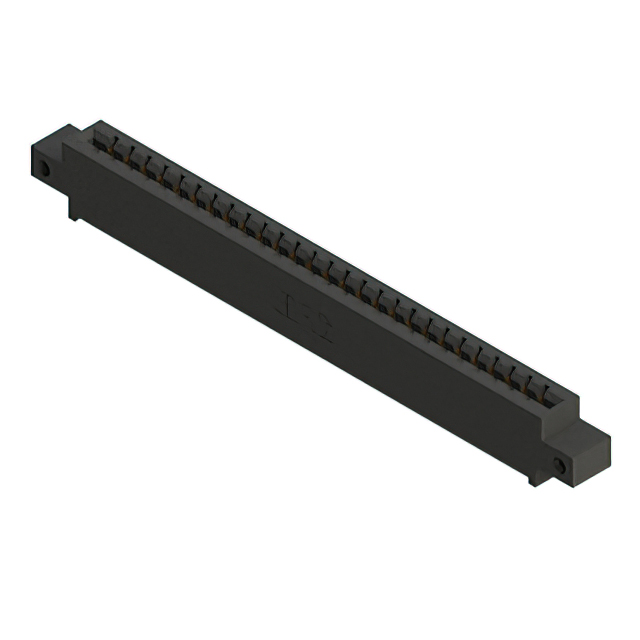

CONN EDGE SGL FMALE 27POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Color | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Termination | Contact Material | Pitch | Pitch | Contact Finish | Number of Positions/Bay/Row | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Solder | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2.95 mm | 0.116 " | 27 | Solder Eyelet(s) | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 27 | Solder | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.96 mm | 0.156 " | 27 | Solder | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Solder | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Solder Eyelet(s) | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Cantilever | Non Specified - Single Edge | Single | 125 °C | -40 C | Female | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 3.25 mm | 0.128 " | 27 | Wire Wrap | Copper Alloy | 3.96 mm | 0.156 in | Gold | 27 | Flush Mount Top Opening Unthreaded |
