M0116SD Series

Catalog

MODULE VF CHAR 1X16 5.29MM

Part	Controller Type	Operating Temperature [Min]	Operating Temperature [Max]	Display Type	Display Format [x]	Display Format [y]	Interface	Format [y]	Format [x]	Viewing Area [x]	Viewing Area [y]	Character Size [z]	Character Size [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Format	Voltage - Supply [Min]	Voltage - Supply [Max]

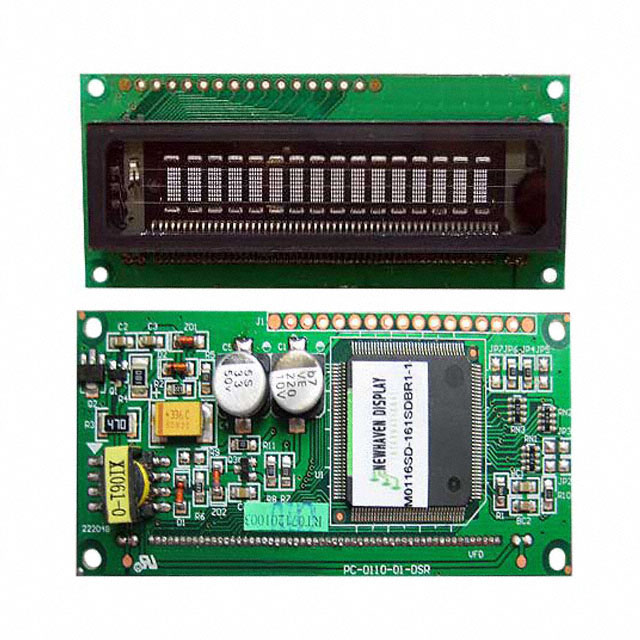

Newhaven Display Intl M0116SD-161SDBR1-1	PT6314	-20 ░C	70 °C	Character	16	1	Parallel/Serial	8 Dots	5 Dots	51.5 mm	5.29 mm	5.29 mm	2.1 mm	36 mm	11 mm	80 mm

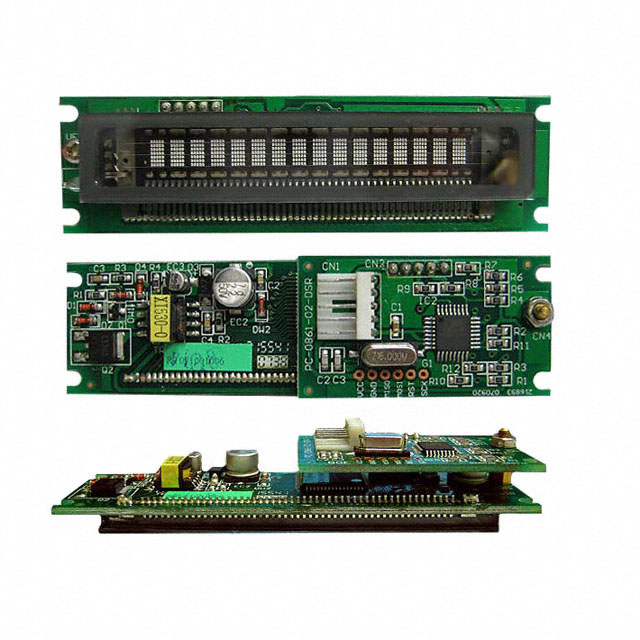

Newhaven Display Intl M0116SD-161SDBR1-S	PT63021	-40 C	85 °C	Character	16	1	Serial	7	5 Dots	61.8 mm	5.1 mm	5.1 mm	2.55 mm	28 mm	9.5 mm	100 mm	Dots	4.75 V	5.25 V
