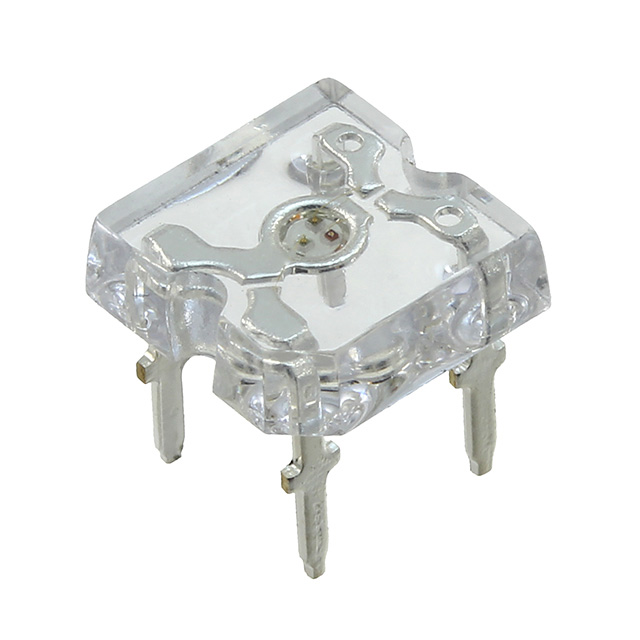

R50RGB-F-0160 Series
Manufacturer: Bivar Inc.
Beta
⌘K
LED, RGB, RED, GREEN, BLUE, THROUGH HOLE, 160 °, DOME, R 50MA, G 50MA, B 50MA
| Part | Lens Size | Viewing Angle | Lens Style | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Color | Mounting Type | Configuration | Lens Transparency | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Lens Color | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 7.6 mm | 160 ° | Square with Flat Top | 50 mA | 50 mA | 50 mA | 465nm Blue 520nm Green 628nm Red | 2.6 V 3.8 V 3.8 V | Blue Green Red | Through Hole | Common Cathode | Clear | 150 mcd | 600 mcd | 800 mcd | 4-DIP (0.200" 5.08mm) | 7.6 mm | 7.6 mm | Colorless | 4.4 mm |
