R2E140 Series

Catalog

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER

Part	Material - Blade	Current Rating (Amps)	Bearing Type	Termination	Size / Dimension	Size / Dimension [diameter]	Approval Agency	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Voltage - Rated	Fan Type	Width [x]	Ingress Protection	Features	Weight	Weight	Power (Watts)	Operating Temperature	Operating Temperature

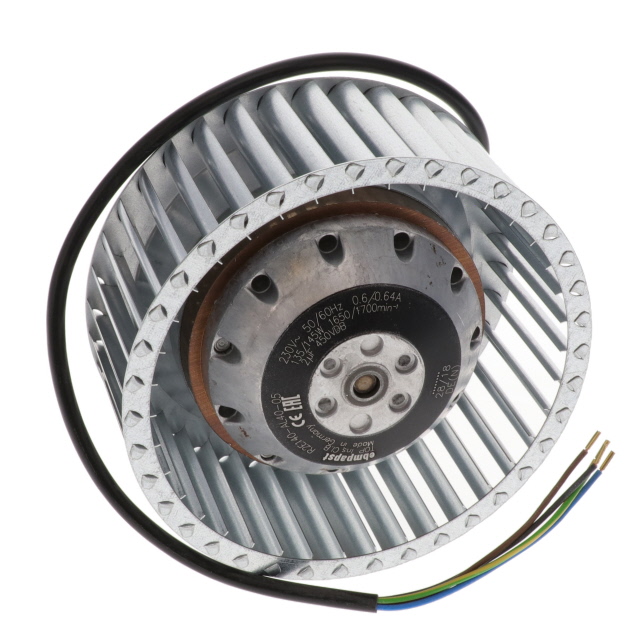

ebm-papst Inc. R2E140-AL40-05	Steel	0.64 A	Ball	4 Wire Leads with Splice Terminals	Round	140 mm	CCC CE EAC	1700 RPM	40 °C	-25 °C	-25 °C	40 °C	100 Pa	0.401 in H2O	230 VAC	Motorized Impellers	72 mm	IP44	Capacitor Thermal Overload Protector (TOP)	1.1 kg	2.4 lbs	145 W
ebm-papst Inc. R2E140-AS77-05	Polypropylene (PP)	480 mA	Ball	4 Wire Leads with Splice Terminals	Round	140 mm		1400 RPM	30 °C	-25 °C					230 VAC	Motorized Impellers	72 mm	IP44	Capacitor Thermal Overload Protector (TOP)	1.1 kg	2.4 lbs	110 W

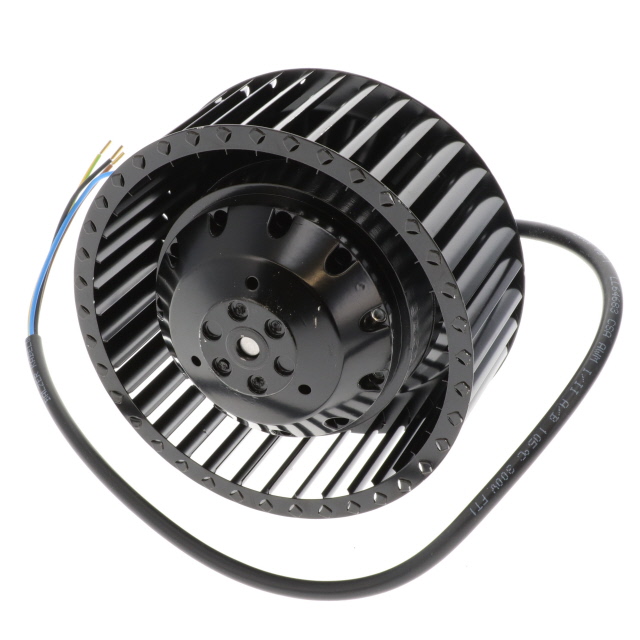

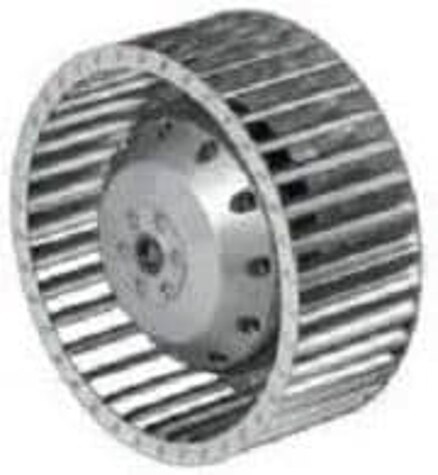

ebm-papst Inc. R2E140-AI31-30	Steel	1.64 A	Ball	4 Wire Leads with Splice Terminals	Round	140 mm	CSA UL	2200 RPM							115 VAC	Motorized Impellers	72 mm	IP44	Capacitor Thermal Overload Protector (TOP)	1.1 kg	2.4 lbs	195 W	70 °C	70 °C
ebm-papst Inc. R2E140-AE77-05	Steel	0.51 A	Ball	4 Wire Leads with Splice Terminals	Round	140 mm	CCC CE EAC	1500 RPM	35 °C	-25 °C			50 Pa	0.201 in H2O	230 VAC	Motorized Impellers	72 mm	IP44	Capacitor Thermal Overload Protector (TOP)	1.1 kg	2.4 lbs	115 W
