HLMP05 Series

Catalog

LED GRN DIFFUSED RECTANGULAR T/H

Part	Lens Color	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Millicandela Rating	Wavelength - Peak	Lens Style	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Package / Case	Viewing Angle	Lens Transparency	Color	Height (Max) [Max] [z]	Configuration
ON Semiconductor HLMP0503	Green	Through Hole	7.24 mm	2.42 mm	20 mA	3 mcd	565 nm	Rectangle with Flat Top	2.42 mm	7.24 mm	2.3 V	Rectangular	Radial	100 °	Diffused	Green	8 mm	Standard

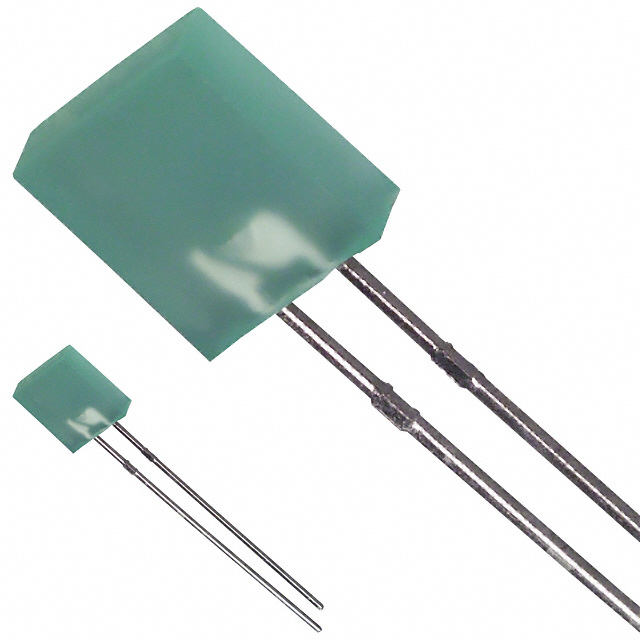

ON Semiconductor HLMP0504	Green	Through Hole	7.24 mm	2.42 mm	20 mA	5 mcd	565 nm	Rectangle with Flat Top	2.42 mm	7.24 mm	2.3 V	Rectangular	Radial	100 °	Diffused	Green	8 mm	Standard
