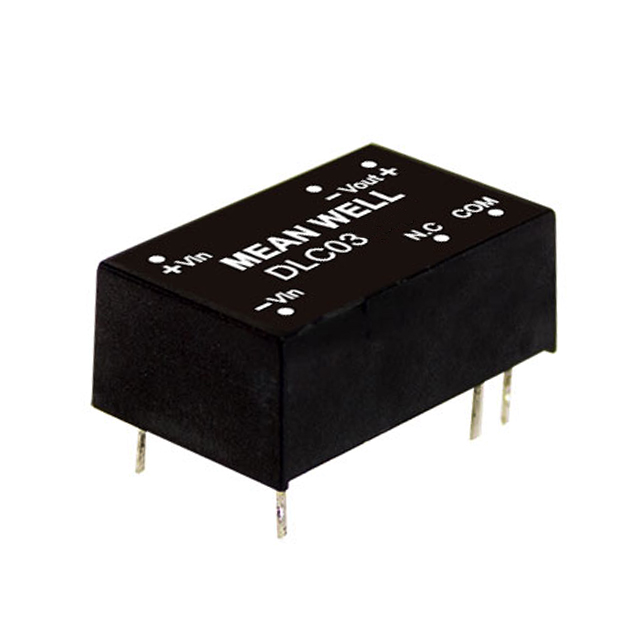

DLC03 Series

Catalog

DC DC CONVERTER +/-5V 3W

Part	Voltage - Isolation	Number of Outputs	Package / Case	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Features	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 2	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. DLC03B-05	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	18 V	0.3 A	OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	5 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	36 V	-5 V	79 %
MEAN WELL USA Inc. DLC03A-15	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	9 V		OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	15 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	18 V	-15 V	81 %	100 mA	100 mA
MEAN WELL USA Inc. DLC03C-15	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	36 V		OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	15 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	75 V	-15 V	80 %	100 mA	100 mA
MEAN WELL USA Inc. DLC03B-15	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	18 V		OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	15 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	36 V	-15 V	80 %	100 mA	100 mA
MEAN WELL USA Inc. DLC03B-12	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	18 V		OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	12 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	36 V	-12 V	81 %			125 mA
MEAN WELL USA Inc. DLC03A-12	1.5 kV	2	16-DIP Module 6 Leads	Isolated Module	9 V		OCP SCP UVLO	ITE (Commercial)	-40 °C	85 °C	Through Hole	12 V	22.1 mm	0.87 in	0.34 in	8.6 mm	0.54 in	13.8 mm	3 W	18 V	-12 V				125 mA
