DV6248 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

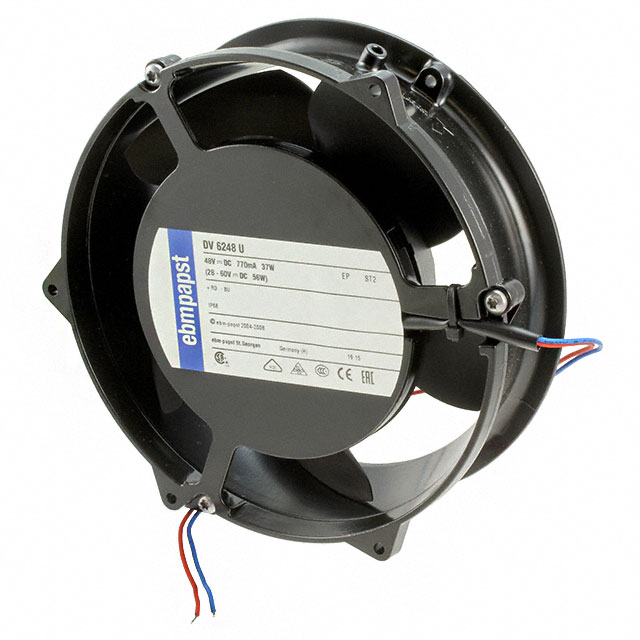

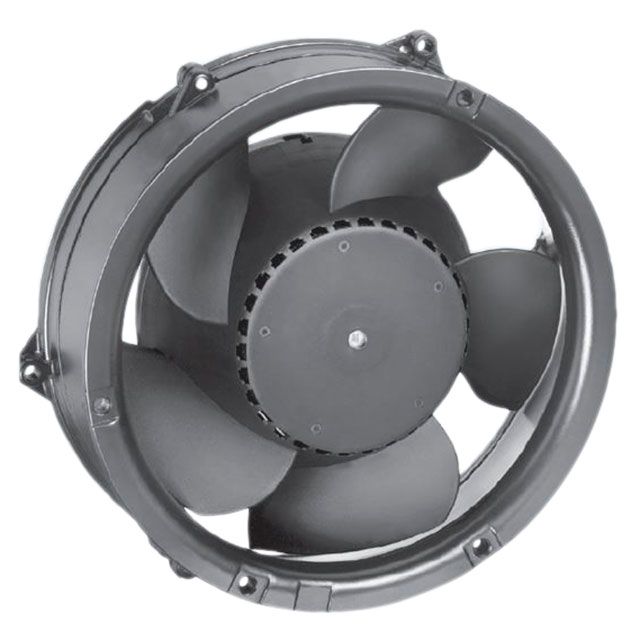

FAN AXIAL 171.5X50.8MM 48VDC
| Part | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Noise | Power (Watts) | Size / Dimension [diameter] | Size / Dimension | Fan Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Air Flow | Air Flow | Width [y] | Voltage - Rated | Bearing Type | Approval Agency | Termination | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 28 V | 60 V | 63 dB | 40 W | 171.5 mm | Round | Tubeaxial | IP68 - Dust Tight Waterproof | -4 °F | 167 °F | 4300 RPM | 317.8 CFM | 8.9 m³/min | 50.8 mm | 48 VDC | Ball | UL | 2 Wire Leads | 861.8 g | 1.9 lbs |
