2R5TPG Series

Catalog

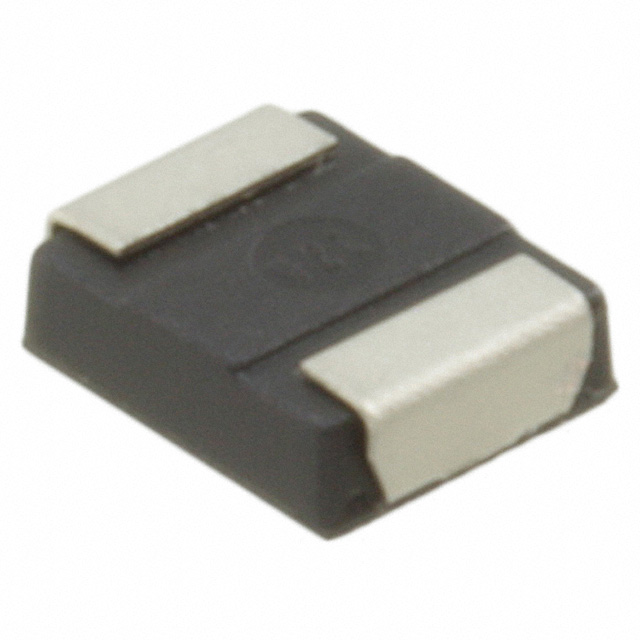

CAP TANT POLY 220UF 2.5V 1411

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Capacitance	Voltage - Rated	Tolerance	Features	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code	Type	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 2R5TPG220MUG	0.059 "	1.5 mm	Surface Mount	220 µF	2.5 V	20 %	General Purpose	3528 Metric	1411	3.5 mm	0.11 "	2.8 mm	0.138 in	B15G	Molded	30 mOhm	-55 C	105 ░C
Panasonic Electronic Components 2R5TPG220M			Surface Mount	220 µF	2.5 V	20 %	General Purpose	3528 Metric	1411	3.5 mm	0.11 "	2.8 mm	0.138 in	B1G	Molded	70 mOhm	-55 C	105 ░C	1.2 mm	0.047 "
