833-028 Series
Manufacturer: EDAC Inc.
Beta
⌘K

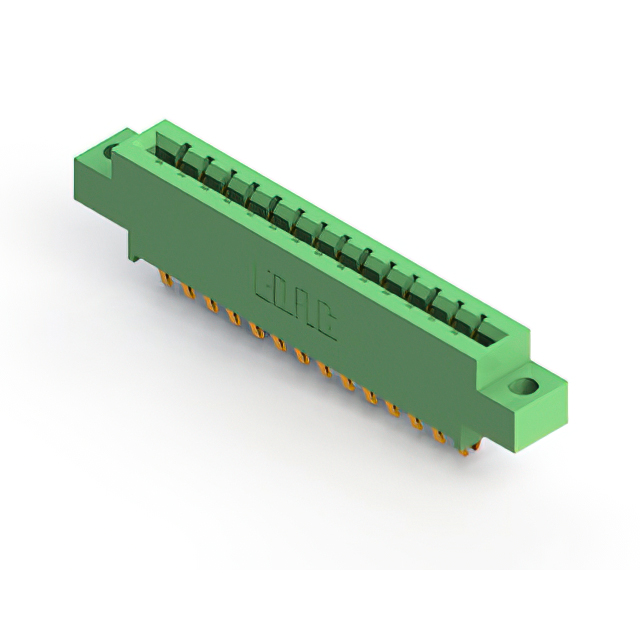

CONN EDGE DUAL FMALE 28POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Color | Contact Material | Number of Rows [custom] | Features | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Read Out | Termination | Number of Positions/Bay/Row | Contact Finish | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Number of Positions | Card Type | Flange Feature | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | Card Extender | 0.156 " | 3.96 mm | Board Edge Straddle Mount | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | Card Extender | 0.116 " | 2.95 mm | Board Edge Straddle Mount | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | 0.128 " | 3.25 mm | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | 0.116 " | 2.95 mm | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 28 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 28 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | 0.128 " | 3.25 mm | Right Angle Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | 0.128 " | 3.25 mm | Right Angle Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Copper Alloy | 2 | 0.128 " | 3.25 mm | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Wire Wrap | 14 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Dual Edge | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | 0.156 " | 3.96 mm | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 28 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Single Edge | 1 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Through Hole | Cantilever | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 28 | Gold | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 28 | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 1 | 1 |
