AX01F030 Series
Manufacturer: JAE Electronics
Beta
⌘K
FLOATING SIDE B2B CONNECTOR, 30
| Part | Contact Finish | Number of Positions | Height Above Board | Number of Rows | Features | Pitch | Contact Finish Thickness | Connector Type | Mounting Type | Mated Stacking Height (Max) | Mated Stacking Height (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|

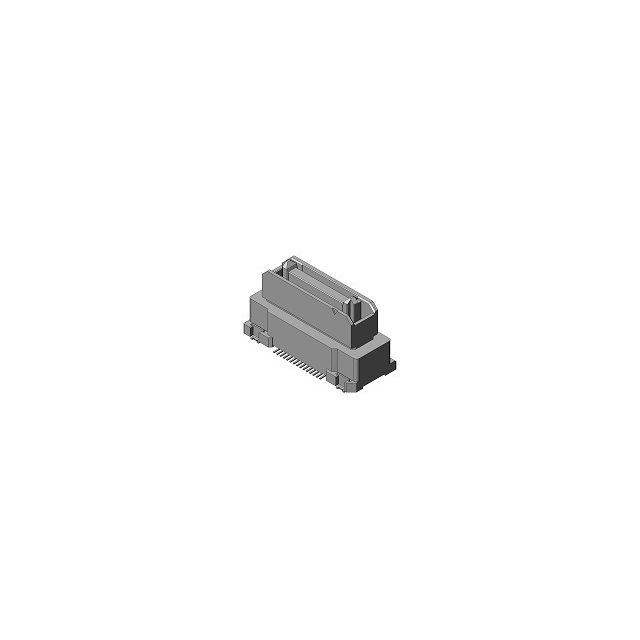

 JAE Electronics | Gold | 30 | 0.484 in | 2 | Board Guide Solder Retention | 0.025 in | 4 µin | Center Strip Contacts Receptacle | Surface Mount | ||

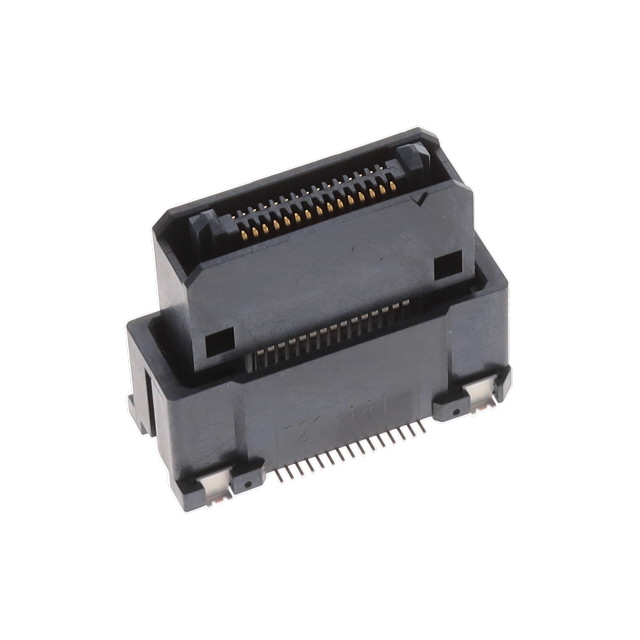

 JAE Electronics | Gold | 30 | 0.72 in | 2 | Board Guide Solder Retention | 0.025 in | 4 µin | Center Strip Contacts Receptacle | Surface Mount | 30 mm | 8 mm |
