R14107 Series

Catalog

BNC / STRAIGHT PLUG CRIMP TYPE C

Part	Center Contact Plating	Body Finish	Mating Cycles	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mounting Type	Number of Ports	Housing Color	Connector Type	Cable Group	Cable Group	Contact Termination	Center Contact Material	Fastening Type	Frequency - Max [Max]	Connector Style	Shield Termination	Impedance

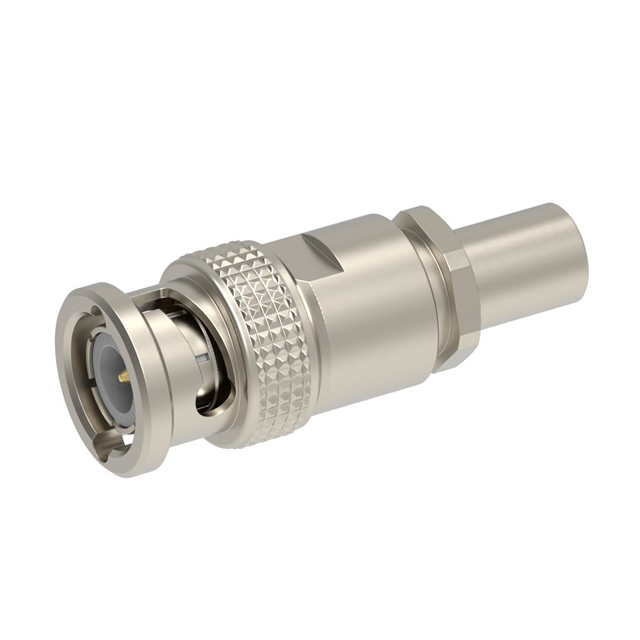

Radiall USA, Inc. R141072000	Gold	Nickel	500	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-58	141	Crimp	Brass	Bayonet Lock	4 GHz	BNC	Crimp	50 Ohms
Radiall USA, Inc. R141075161W	Gold	Nickel		Polytetrafluoroethylene (PTFE)	500 V	-35 °C	70 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-174	316	Crimp	Brass	Bayonet Lock	1.5 GHz	BNC	Crimp	50 Ohms

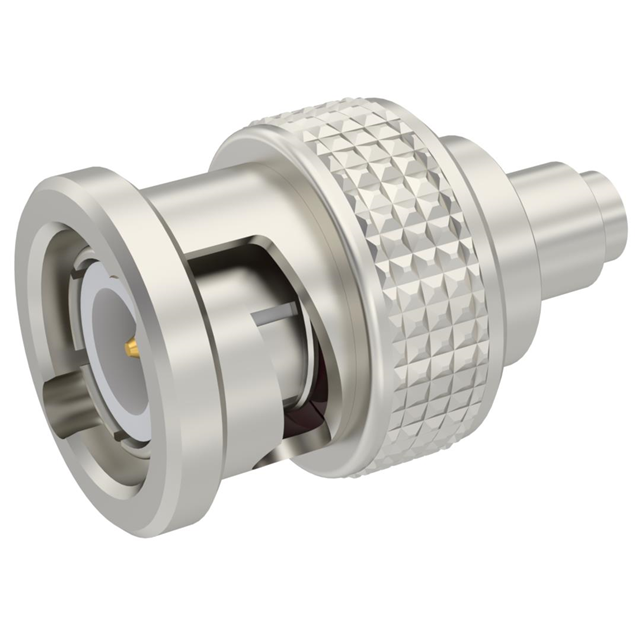

Radiall USA, Inc. R141070520	Gold	Nickel	500	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-178	196	Crimp	Brass	Bayonet Lock	1.2 GHz	BNC	Crimp	50 Ohms

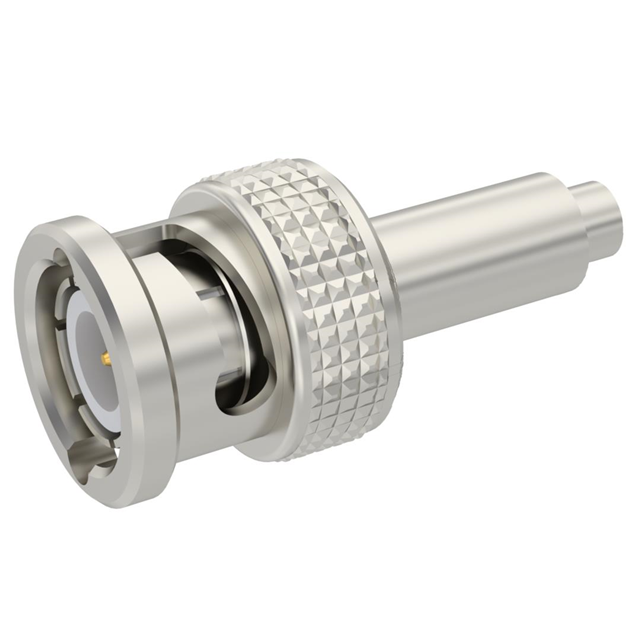

Radiall USA, Inc. R141075000	Gold	Nickel		Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	165 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-174	316	Crimp	Brass	Bayonet Lock	4 GHz	BNC	Crimp	50 Ohms
Radiall USA, Inc. R141072000W	Gold	Nickel	500	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-58	141	Crimp	Brass	Bayonet Lock	4 GHz	BNC	Crimp	50 Ohms

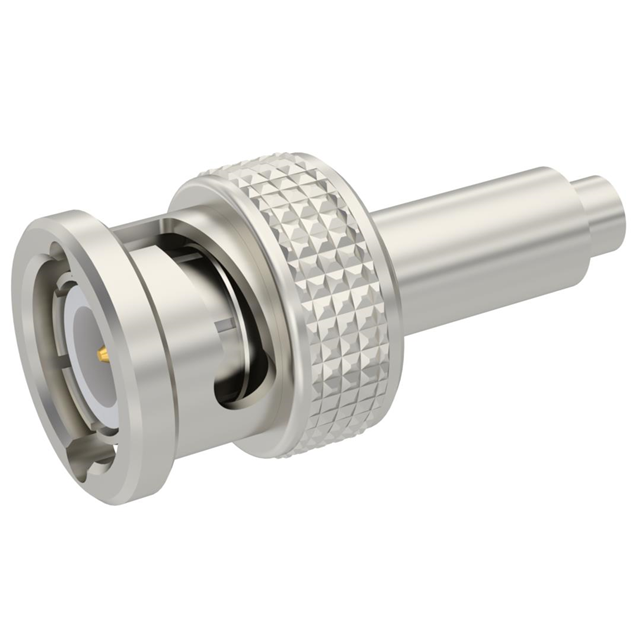

Radiall USA, Inc. R141075161	Gold	Nickel	500	Polytetrafluoroethylene (PTFE)	335 V	-35 °C	70 °C	Brass	Free Hanging (In-Line)	1	Silver	Plug Male Pin	RG-174	316	Crimp	Brass	Bayonet Lock	1.5 GHz	BNC	Crimp	50 Ohms
