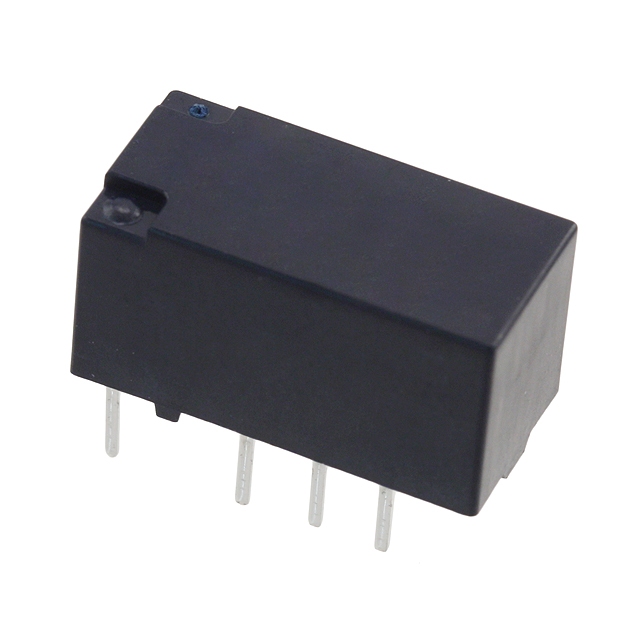

SIGNAL RELAY, 5 VDC, DPDT, 2 A, THROUGH HOLE, DC MONOSTABLE
| Part | Coil Voltage | Relay Type | Seal Rating | Coil Current | Must Release Voltage | Operate Time | Approval Agency | Contact Material | Coil Type | Must Operate Voltage | Release Time | Termination Style | Contact Form | Operating Temperature (Min) | Operating Temperature (Max) | Contact Rating (Current) | Mounting Type | Switching Voltage DC (Max) | Load - Max Switching (Real Power) | Coil Resistance | On-State Resistance (Max) | Load Current | Package Length | Package Name | Package Width | Voltage - Input | Output Type | Voltage - Load (Min) | Voltage - Load (Max) | Circuit | Load - Max Switching (Apparent Power) | Switching Voltage AC (Max) | Coil Insulation | Voltage - Rated (Min) | Voltage - Rated (Max) | Applications | Packages Included | Capacitance Range (Min) | Capacitance Range (Max) | Quantity | Quantity Values | Quantity per Value | Tolerance | Kit Type | Form A Count | Pin Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 5 V | General Purpose | Fully Sealed | 40 mA | 0.5 VDC | 4 ms | BSI cURus | Gold (Au) Silver (Ag) | Non Latching | 3.75 VDC | 4 ms | PC Pin | 2 2 Form C C DPDT Form | -40 °C | 85 °C | 2 A | Through Hole | 220 VDC | 440 W | 125 Ohms | ||||||||||||||||||||||||||
 Panasonic Electronic Components | UR | PC Pin | -40 °C | 85 °C | Through Hole | 1.4 Ohms | 400 mA | 0.3 in | 6-DIP | 7.62 mm | 1.14 VDC | AC DC | 0 V | 60 V | SPST-NO (1 Form A) | |||||||||||||||||||||||||||||||
 Panasonic Electronic Components | 5 V | General Purpose | Fully Sealed | 72 mA | 0.5 VDC | 10 ms | CSA TUV UR VDE | Silver Alloy | Non Latching | 3.5 VDC | 10 ms | PC Pin | 1 C Form SPDT | -40 °C | 70 °C | 10 A | Through Hole | 100 VDC | 1000 W | 69.4 Ohms | 2500 VA | 250 VAC | Class E | |||||||||||||||||||||||
 Panasonic Electronic Components | 5 V | General Purpose | 80 mA | 0.25 VDC | 5 ms | CSA TUV UR VDE | Silver Alloy | Non Latching | 3.75 VDC | 2 ms | PC Pin | 1 C Form SPDT | -40 °C | 70 °C | 5 A | Through Hole | 110 VDC | 550 W | 62.5 Ohms | 1250 VA | 250 VAC | Class E | ||||||||||||||||||||||||
 Panasonic Electronic Components | Surface Mount | 2 V | 16 V | General Purpose | 2917 (7343 Metric) | 8.2 µF | 470 µF | 180 pcs | 12 Values | 15 Each | 20 % | Aluminum (Polymer) | ||||||||||||||||||||||||||||||||||
 Panasonic Electronic Components | BSI cURus | PC Pin | -40 °C | 85 °C | Through Hole | 3.2 Ohms | 350 mA | 10.16 mm | 4-DIP | 10.16 mm | 1.16 VDC | AC DC | 0 V | 400 V | SPST-NO (1 Form A) | |||||||||||||||||||||||||||||||
 Panasonic Electronic Components | BSI cURus | PC Pin | -40 °C | 85 °C | Through Hole | 180 mOhms | 2 A | 10.16 mm | 4-DIP | 10.16 mm | 1.16 VDC | AC DC | 0 V | 60 V | SPST-NO (1 Form A) | |||||||||||||||||||||||||||||||
 Panasonic Electronic Components | 4.5 VDC | General Purpose | 44.6 mA | 0.22 VDC | 10 ms | CSA TUV UR VDE | Silver Nickel (AgNi) | Non Latching | 3.38 VDC | 10 ms | PC Pin | SPST-NO | -40 °C | 70 °C | 3 A | Through Hole | 30 VDC | 90 W | 101 Ohms | 831 VA | 277 VAC | 1 | ||||||||||||||||||||||||
 Panasonic Electronic Components | 5 V | Telecom | 56.2 mA | 0.5 VDC | 3 ms | CSA UR | Gold (Au) Silver (Ag) | Non Latching | 3.75 VDC | 3 ms | PC Pin | 4 C Form PDT | -40 °C | 70 °C | 1 A | Through Hole | 110 VDC | 110 W | 89 Ohms | 125 VA | 125 VAC | 4 | ||||||||||||||||||||||||
 Panasonic Electronic Components | 9 VDC | Telecom | Fully Sealed | 16.7 mA | 0.9 VDC | 5 ms | CSA UR | Gold (Au) Silver (Ag) | Non Latching | 6.75 VDC | 4 ms | PC Pin | 1 C Form SPDT | -40 °C | 70 °C | 1 A | Through Hole | 60 VDC | 60 W | 540 Ohms |
