PPPC071 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 7POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Mating	Insulation Color	Contact Type	Connector Type	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Fastening Type	Contact Finish - Post	Current Rating (Amps)	Number of Positions Loaded	Voltage Rating	Termination	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPPC071LGBN-RC	Square	Phosphor Bronze	Flash	Polyester	Gold	Black	Female Socket	Header	Flash	0.1 "	2.54 mm	-40 C	105 ░C	7	0.124 in	3.15 mm	UL94 V-0	0.1 in	2.54 mm	1	Push-Pull	Gold	3 A	All	250 V	Solder	Right Angle Through Hole

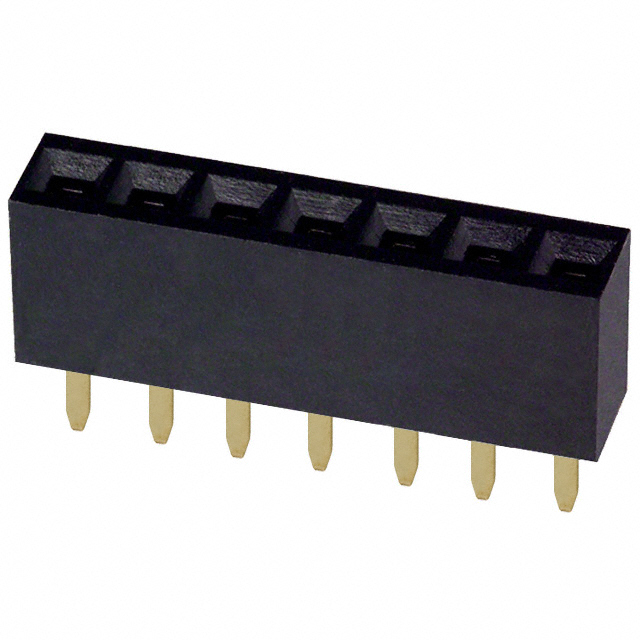

Sullins Connector Solutions PPPC071LFBN-RC	Square	Phosphor Bronze	Flash	Polyester	Gold	Black	Female Socket	Header	Flash	0.1 "	2.54 mm	-40 C	105 ░C	7			UL94 V-0	0.335 "	8.51 mm	1	Push-Pull	Gold	3 A	All	250 V	Solder	Through Hole	0.126 "	3.2 mm
Sullins Connector Solutions PPPC071LFBN-M283RC	Square	Phosphor Bronze	Flash	Polyester	Gold	Black	Female Socket	Header	Flash	0.1 "	2.54 mm	-40 C	105 ░C	7	0.1 in	2.54 mm	UL94 V-0	0.335 "	8.51 mm	1	Push-Pull	Gold	3 A	All	250 V	Solder	Through Hole
Sullins Connector Solutions PPPC071KFXC	Square	Phosphor Bronze	Flash	Polyester	Gold	Black	Female Socket	Header Top or Bottom Entry	Flash	0.1 "	2.54 mm	-40 C	105 ░C	7			UL94 V-0	0.28 in	7.1 mm	1	Push-Pull	Gold	3 A	All	250 V	Solder	Surface Mount
Sullins Connector Solutions PPPC071LGBN	Square	Phosphor Bronze	Flash	Polyester	Gold	Black	Female Socket	Header	Flash	0.1 "	2.54 mm	-40 C	105 ░C	7	0.124 in	3.15 mm	UL94 V-0	0.1 in	2.54 mm	1	Push-Pull	Gold	3 A	All	250 V	Solder	Right Angle Through Hole
