282834 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 5P SIDE ENT 2.54MM PCB

Part	Torque - Screw	Torque - Screw	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Clamp Material - Plating	Number of Levels	Positions Per Level	Screw Thread	Pitch [x]	Pitch [x]	Current	Mating Orientation	Color	Screw Material - Plating	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage

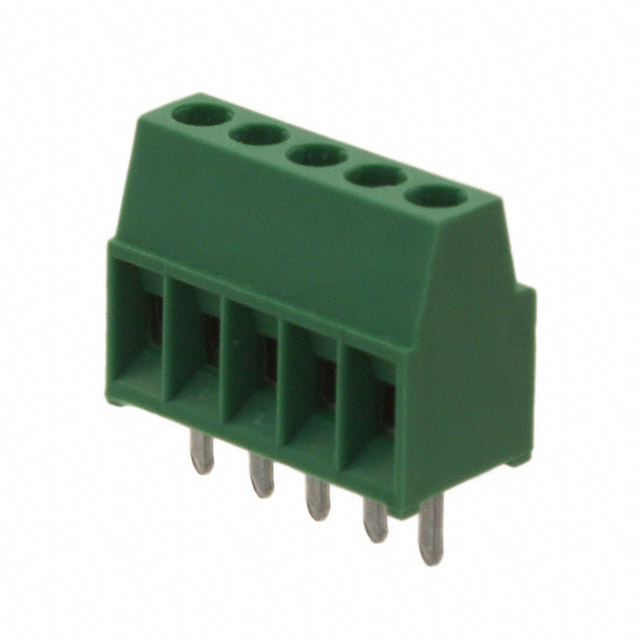

TE Connectivity Raychem Cable Protection 282834-5	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	5	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V

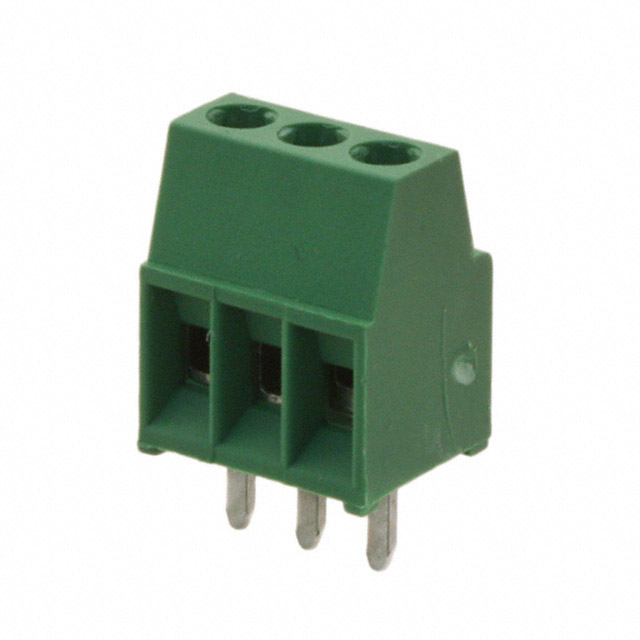

TE Connectivity Raychem Cable Protection 282834-3	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	3	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V

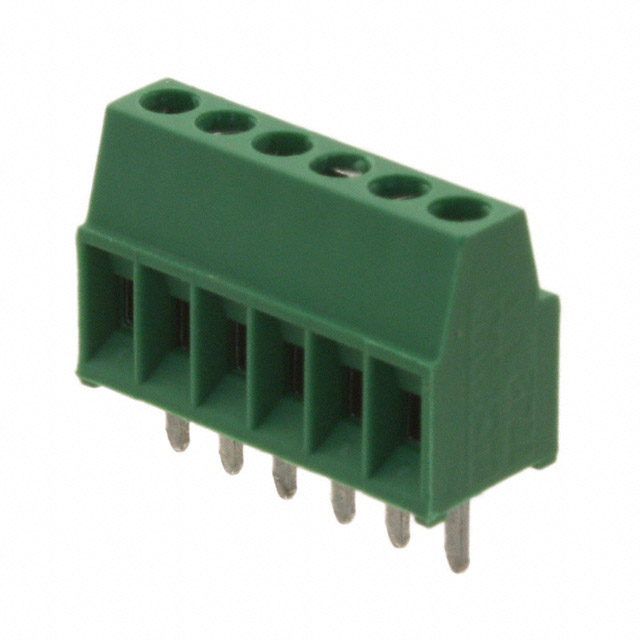

TE Connectivity Raychem Cable Protection 282834-6	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	6	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V
TE Connectivity Raychem Cable Protection 1-282834-3	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	13	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V

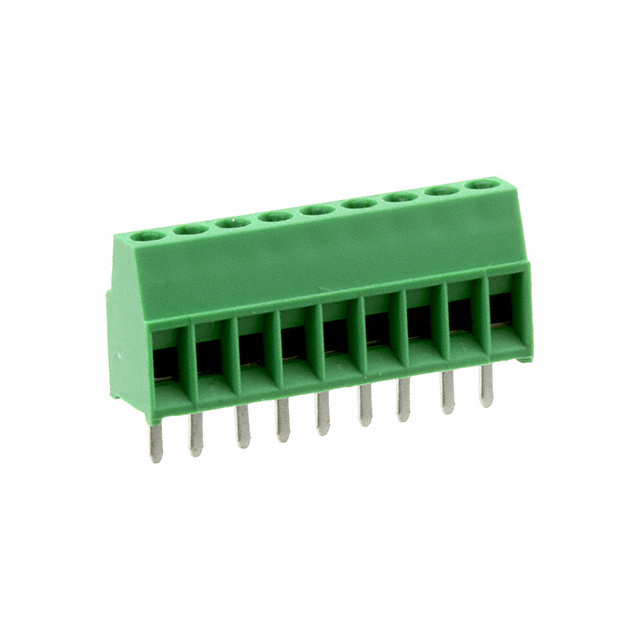

TE Connectivity Raychem Cable Protection 282834-9	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	9	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V

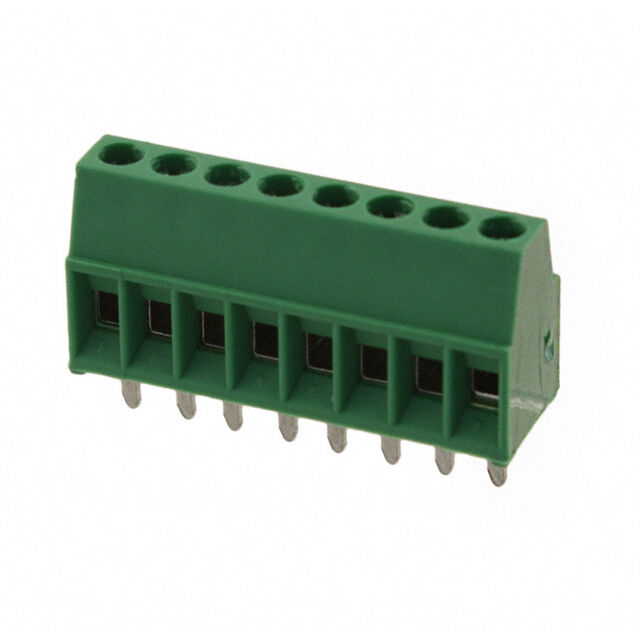

TE Connectivity Raychem Cable Protection 282834-8	0.2 Nm	1.7 Lb-In	Screw - Rising Cage Clamp	30 AWG	16 AWG	Through Hole	Brass - Nickel Plated	1	8	M1.6	2.54 mm	0.1 in	10 A	Horizontal with Board	Green	Stainless Steel	Brass - Tin Plated	-40 °C	105 ░C	150 V
