TEA1523 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

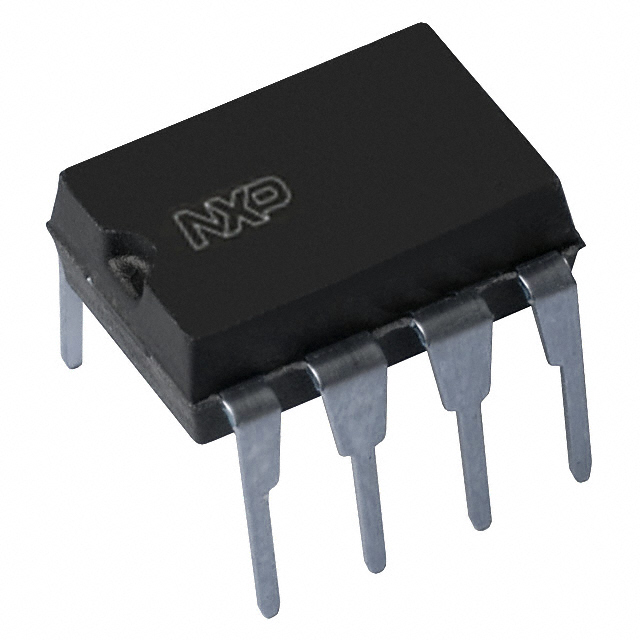

IC OFFLINE SWITCH FLYBACK 8DIP
| Part | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) Maximum | Voltage - Supply (Vcc/Vdd) Minimum | Operating Temperature (Max) | Operating Temperature (Min) | Duty Cycle | Mounting Type | Control Features | Internal Switch(s) | Power (Watts) | Voltage - Breakdown | Frequency - Switching (Max) | Frequency - Switching (Min) | Fault Protection | Topology | Output Isolation | Package Name | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 9.5 V | 40 V | 7.5 V | 145 °C | -40 °C | 75 % | Through Hole | Frequency Control | Yes | 30 W | 650 V | 200 kHz | 10 kHz | Current Limiting Over Temperature Short Circuit | Flyback | Isolated | 8-DIP | 0.3 in | 7.62 mm |
