M38920 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

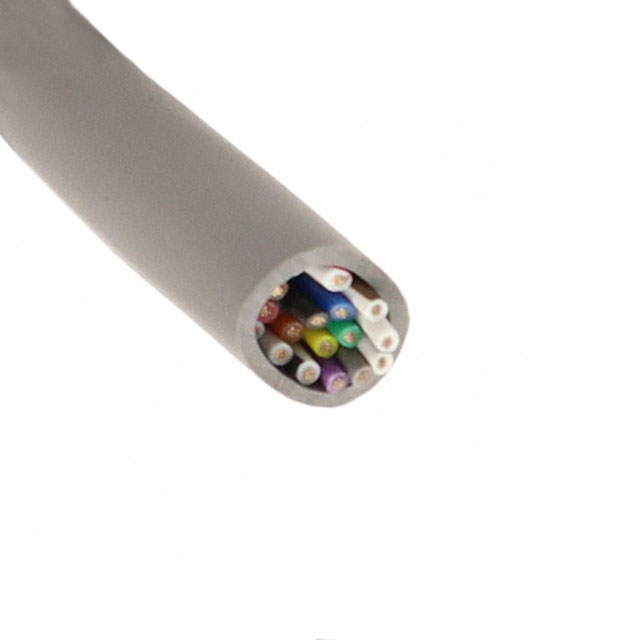

CABLE 20COND 24AWG SLATE 3000'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Number of Conductors | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length | Length | Wire Gauge | Ratings | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.297 in | 7.54 mm | 7 | 32 AWG | Multi-Conductor | Slate | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 20 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 914.4 m | 3000 ' | 24 AWG | UL Style 2464 | 300 VDC | ||
 ALPHA WIRE | 0.297 in | 7.54 mm | 7 | 32 AWG | Multi-Conductor | Slate | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 20 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 24 AWG | UL Style 2464 | 300 VDC | 100 ft | 30.5 m | ||
ALPHA WIRE | 0.297 in | 7.54 mm | 7 | 32 AWG | Multi-Conductor | Slate | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 20 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 24 AWG | UL Style 2464 | 300 VDC |
