FSW Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 5A 125VAC 7AG

Part	Voltage Rating - AC	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Size / Dimension [diameter]	Size / Dimension [x]	Approval Agency	Response Time	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Voltage Rating - DC
OptiFuse FSW-5A	125 V	Cartridge Glass	5 A	200 A	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4
OptiFuse FSW-30A	32 V	Cartridge Glass	30 A	1 kA	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4	32 V

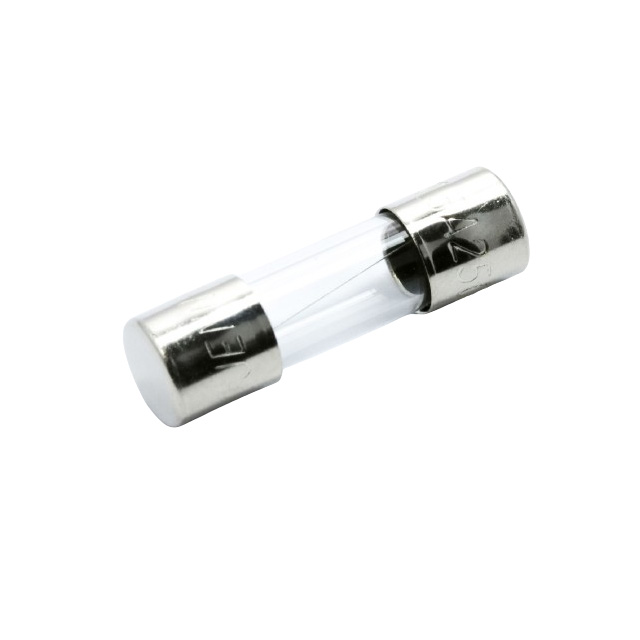

OptiFuse FSW-1.5A	125 V	Cartridge Glass	1.5 A		0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4
OptiFuse FSW-1A	125 V	Cartridge Glass	1 A		0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4
OptiFuse FSW-10A	32 V	Cartridge Glass	10 A	1 kA	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4	32 V
OptiFuse FSW-3A	125 V	Cartridge Glass	3 A	200 A	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4
OptiFuse FSW-2.5A	125 V	Cartridge Glass	2.5 A	200 A	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4
OptiFuse FSW-20A	32 V	Cartridge Glass	20 A	1 kA	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4	32 V
OptiFuse FSW-15A	32 V	Cartridge Glass	15 A	1 kA	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4	32 V
OptiFuse FSW-6A	32 V	Cartridge Glass	6 A	1 kA	0.25 "	0.874 " 22.2 mm	UL 248	Fast Blow	Requires Holder	7AG	7/8	1/4	32 V
