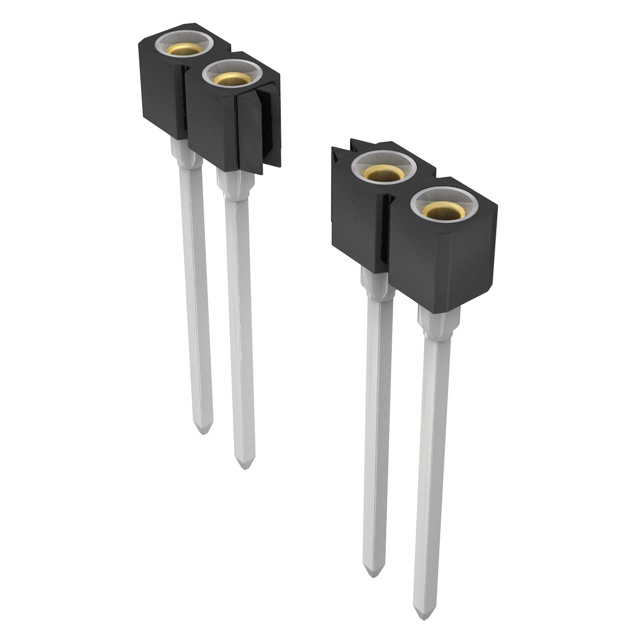

323-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 22POS 0.1 GOLD PCB

Part	Contact Material	Contact Shape	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Fastening Type	Mounting Type	Connector Type	Contact Type	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height
Preci-Dip 323-83-122-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	22	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-111-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	11	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-154-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	54	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-115-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	15	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-138-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	38	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-136-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	36	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-156-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	56	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-120-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	20	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-157-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	57	0.1 "	2.54 mm	4.9 mm	0.193 "
Preci-Dip 323-83-114-41-001101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	29.5 µin	0.75 µm	UL94 V-0	-55 C	125 °C	Tin	3 A	Black	Gold	0.51 in	12.95 mm	1	Push-Pull	Through Hole	Socket	Female Socket	Wire Wrap	14	0.1 "	2.54 mm	4.9 mm	0.193 "
