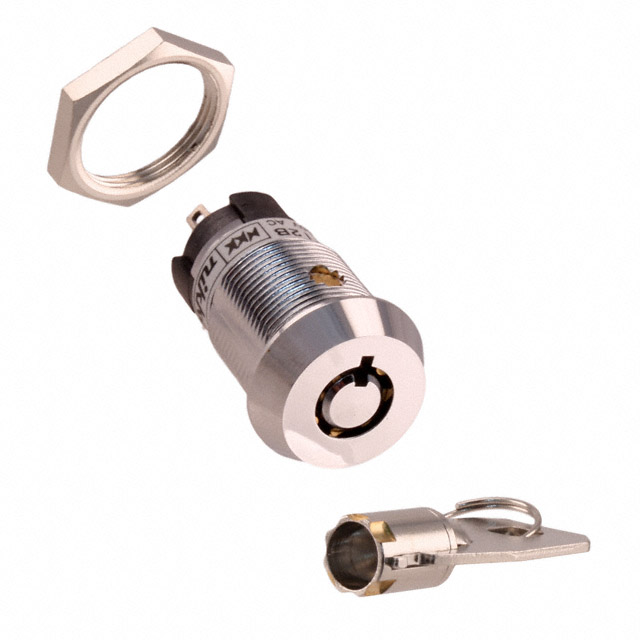

CKL12ATW Series

Catalog

SWITCH KEYLOCK 2POS SPDT 3A 250V

Part	Electrical Life	Depth Behind Flange	Mechanical Life	Contact Material	Current Rating (Amps)	Voltage Rating - AC	Angle of Throw	Number of Positions	Features	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type	Key Removable Positions	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Timing	Circuit	Actuator Type
NKK Switches CKL12ATW01-025	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-035	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-038	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-027	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-046	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key

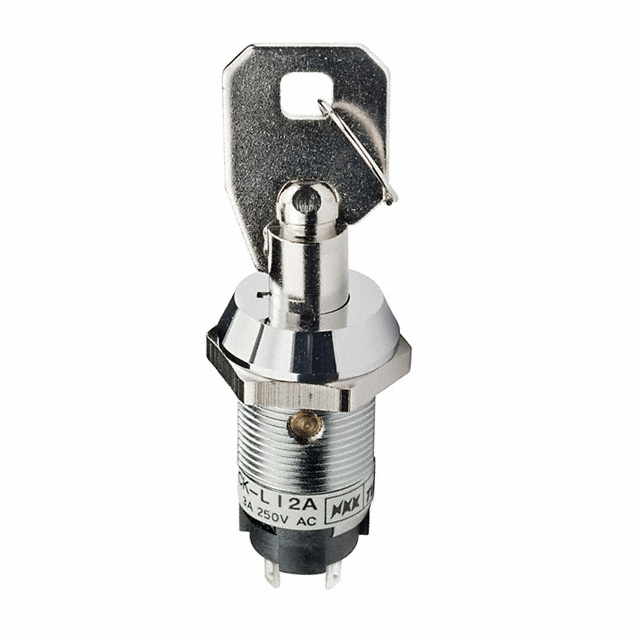

NKK Switches CKL12ATW01-010	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-015	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-018	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-050	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
NKK Switches CKL12ATW01-012	10000 Cycles	34.6 mm	30000 Steps	Silver (Ag)	3 A	250 V	90 °	2	Epoxy Sealed Terminals	On-On	19 mm	Panel Mount	All	Solder Lug	-25 °C	70 °C	Silver	Non-Shorting (BBM)	SPDT	Tubular Key
