PS20-302 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
PRES SWITCH -100-300 KPA NPN
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Maximum Pressure | Maximum Pressure | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Accuracy | Pressure Type | Port Size | Output Type | Operating Pressure [Max] | Operating Pressure [Max] | Operating Pressure [Min] | Operating Pressure [Min] | Port Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 30 VDC | 10.8 VDC | Temperature Compensated | 600 PSI | 4136.85 kPa | Industrial Automation | -10 °C | 60 °C | 3 % | Compound | Female - M5 | NPN - Open Collector | 43.51 PSI | 3 bar | -1 bar | -14.5 PSI | Threaded | Cable |
Nidec Components Corporation | 30 VDC | 10.8 VDC | Temperature Compensated | 600 PSI | 4136.85 kPa | Industrial Automation | -10 °C | 60 °C | 3 % | Compound | Female - M5 | PNP - Open Collector | 43.51 PSI | 3 bar | -1 bar | -14.5 PSI | Threaded | Cable |

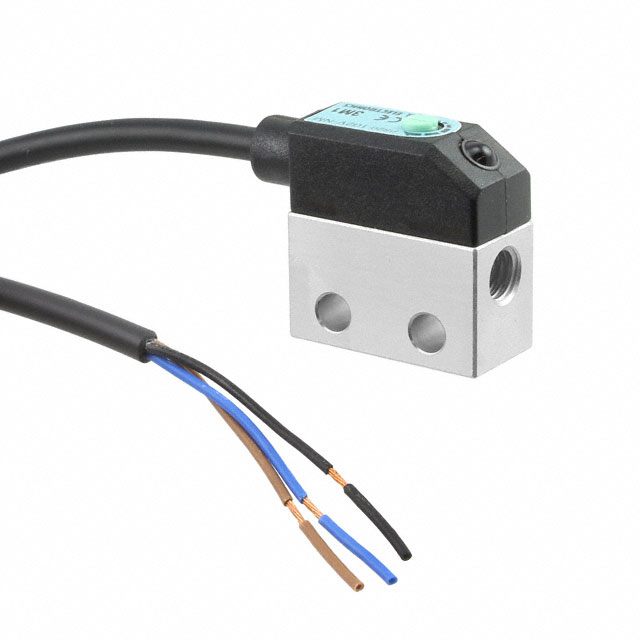

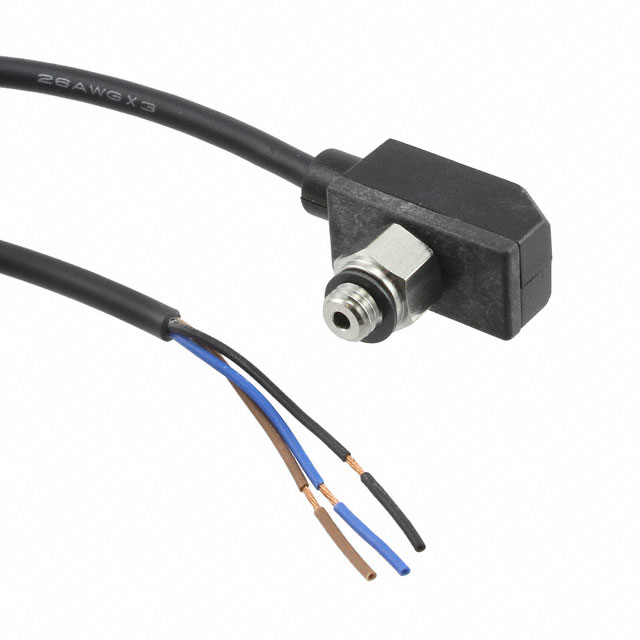

 Nidec Components Corporation | 30 VDC | 10.8 VDC | Temperature Compensated | 600 PSI | 4136.85 kPa | Industrial Automation | -10 °C | 60 °C | 3 % | Compound | Male - M5 | NPN - Open Collector | 43.51 PSI | 3 bar | -1 bar | -14.5 PSI | Threaded | Cable |
Nidec Components Corporation | 30 VDC | 10.8 VDC | Temperature Compensated | 600 PSI | 4136.85 kPa | Industrial Automation | -10 °C | 60 °C | 3 % | Compound | Male - M5 | PNP - Open Collector | 43.51 PSI | 3 bar | -1 bar | -14.5 PSI | Threaded | Cable |
