DRV2511-Q1 Series

Automotive 8A haptic driver for solenoids with integrated fault-protection

Catalog

Automotive 8A haptic driver for solenoids with integrated fault-protection

Part	Supplied Contents	Type	Utilized IC / Part	Function	Grade	Voltage - Load [Max]	Voltage - Load [Min]	Motor Type - AC, DC	Package / Case	Package / Case [x]	Package / Case [y]	Applications	Qualification	Current - Output	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Interface	Mounting Type

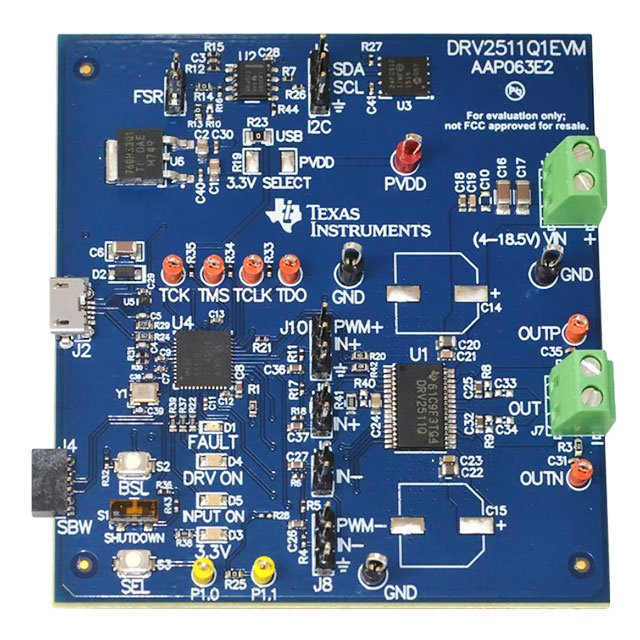

Texas Instruments DRV2511Q1EVM	Board(s)	Power Management	DRV2511-Q1	Motor Controller/Driver Haptic/Vibration
Texas Instruments DRV2511QDAPRQ1				Driver - Fully Integrated Control and Power Stage	Automotive	26 V	4.5 V	Voice Coil Motor	32-PowerTSSOP	0.24 in	6.1 mm	Haptic Feedback	AEC-Q100	8 A	Power MOSFET	4.5 V	26 V	32-HTSSOP	-40 °C	125 °C	Half Bridge (2)	On/Off	Surface Mount

Catalog

Automotive 8A haptic driver for solenoids with integrated fault-protection

Key Features

• AEC-Q100 Qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TADevice HBM ESD classification level H2Device CDM ESD classification level C3Wide operating voltage (4.5 V - 18 V)Capable of handling voltage of 30 VHigh current drive (8-A Peak)Low RDS(on),full H-bridge outputIntegrated fault protectionShort-circuit protectionOver-temperature protectionOver-voltage and under-voltage protectionAnalog inputDedicated interrupt pinAEC-Q100 Qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TADevice HBM ESD classification level H2Device CDM ESD classification level C3Wide operating voltage (4.5 V - 18 V)Capable of handling voltage of 30 VHigh current drive (8-A Peak)Low RDS(on),full H-bridge outputIntegrated fault protectionShort-circuit protectionOver-temperature protectionOver-voltage and under-voltage protectionAnalog inputDedicated interrupt pin

Description

The DRV2511-Q1 device is a high current haptic driver specifically designed for inductive loads, such as solenoids and voice coils. The output stage of the DRV2511-Q1 device consists of a full H-bridge capable of delivering 8 A of peak current. The DRV2511-Q1 device provides protection functions such as undervoltage lockout, over-current protection and over-temperature protection. The DRV2511-Q1 device is automotive qualified. The DRV2511-Q1 device is a high current haptic driver specifically designed for inductive loads, such as solenoids and voice coils. The output stage of the DRV2511-Q1 device consists of a full H-bridge capable of delivering 8 A of peak current. The DRV2511-Q1 device provides protection functions such as undervoltage lockout, over-current protection and over-temperature protection. The DRV2511-Q1 device is automotive qualified.
