79258 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

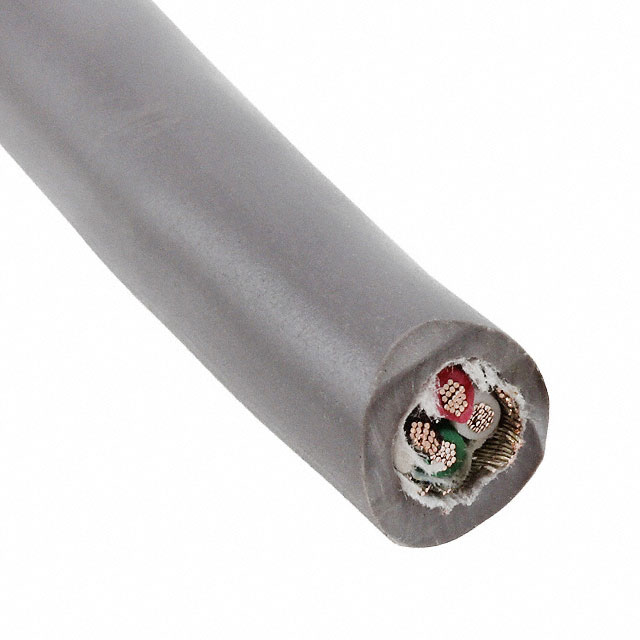

MULTI-CONDUCTOR CABLES 26 AWG 4 CONDUCTOR 600V SUPRASHIELD, MPPE 1000 FT SPOOL SLATE
| Part | Shield Coverage | Shield Material | Shield Type | Features | Jacket (Insulation) Material | Conductor Strand [x] | Conductor Strand [x] | Ratings | Cable Type | Jacket Color | Voltage | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 34 AWG | 7 | ISO 10993 | Multi-Conductor | Slate | 600 V | 26 AWG | 4 | 5.03 mm | 0.198 in | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Copper Tinned | 304.8 m | 1000 ft | 0.035 in | 0.889 mm | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 34 AWG | 7 | ISO 10993 | Multi-Conductor | Slate | 600 V | 26 AWG | 4 | 5.03 mm | 0.198 in | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Copper Tinned | 0.035 in | 0.889 mm | ||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 34 AWG | 7 | ISO 10993 | Multi-Conductor | Slate | 600 V | 26 AWG | 4 | 5.03 mm | 0.198 in | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Copper Tinned | 0.035 in | 0.889 mm | 100 ft | 30.5 m |
