R7F102G Series

Manufacturer: Renesas Electronics Corporation

Catalog

16BIT MCU RL78/G22 32K 20LSSOP -

Part	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Size	Mounting Type	Core Processor	Number of I/O	RAM Size	Speed	Core Size	Connectivity	EEPROM Size	Package / Case	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	Oscillator Type	Supplier Device Package

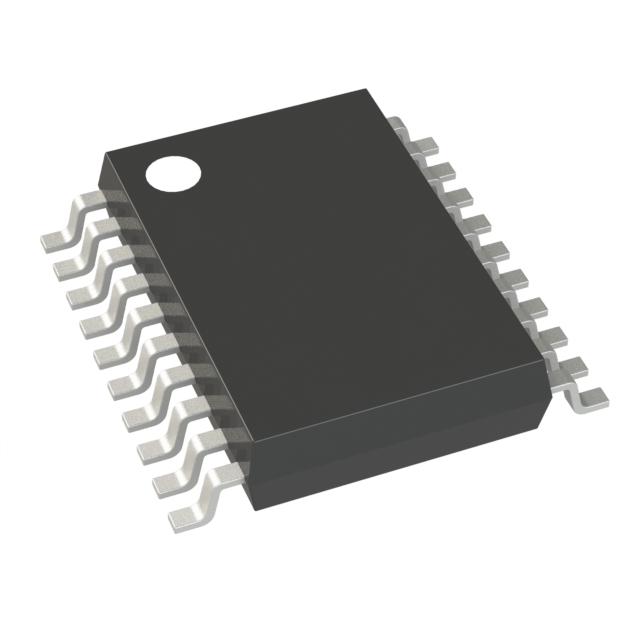

Renesas Electronics Corporation R7F102G6C2DSP#HA0	LVD POR PWM WDT	85 C	-40 ¯C	32 KB	Surface Mount	RL78	15	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	20-LSSOP (0.173" 4.40mm Width)	FLASH	5.5 V	1.6 V	A/D 6x8/10b	Internal	20-LSSOP
Renesas Electronics Corporation R7F102GGE3CNP#HA0	LVD POR PWM WDT	105 °C	-40 °C	64 KB	Surface Mount	RL78	40	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	48-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 10x8/10b	Internal	48-HWQFN (7x7)
Renesas Electronics Corporation R7F102G4E3CNP#BA0	LVD POR PWM WDT	105 °C	-40 °C	64 KB	Surface Mount	RL78	11	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	16-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 3x8/10b	Internal	16-HWQFN 3x3
Renesas Electronics Corporation R7F102GGE2DNP#HA0	LVD POR PWM WDT	85 C	-40 ¯C	64 KB	Surface Mount	RL78	40	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	48-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 10x8/10b	Internal	48-HWQFN (7x7)
Renesas Electronics Corporation R7F102G7C2DNP#HA0	LVD POR PWM WDT	85 C	-40 ¯C	32 KB	Surface Mount	RL78	19	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	24-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 6x8/10b	Internal	24-HWQFN (4x4)
Renesas Electronics Corporation R7F102G7C2DNP#BA0	LVD POR PWM WDT	85 C	-40 ¯C	32 KB	Surface Mount	RL78	19	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	24-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 6x8/10b	Internal	24-HWQFN (4x4)
Renesas Electronics Corporation R7F102G6E2DSP#AA0	LVD POR PWM WDT	85 C	-40 ¯C	64 KB	Surface Mount	RL78	15	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	20-LSSOP (0.173" 4.40mm Width)	FLASH	5.5 V	1.6 V	A/D 6x8/10b	Internal	20-LSSOP
Renesas Electronics Corporation R7F102G4C3CNP#HA0	LVD POR PWM WDT	105 °C	-40 °C	32 KB	Surface Mount	RL78	11	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	16-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 3x8/10b	Internal	16-HWQFN 3x3
Renesas Electronics Corporation R7F102GGC2DNP#BA0	LVD POR PWM WDT	85 C	-40 ¯C	32 KB	Surface Mount	RL78	40	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	48-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 10x8/10b	Internal	48-HWQFN (7x7)
Renesas Electronics Corporation R7F102GGE3CNP#BA0	LVD POR PWM WDT	105 °C	-40 °C	64 KB	Surface Mount	RL78	40	4K x 8	32 MHz	16-Bit	CSI I2C LINbus SPI UART/USART	2K x 8	48-WFQFN Exposed Pad	FLASH	5.5 V	1.6 V	A/D 10x8/10b	Internal	48-HWQFN (7x7)
