TFT2009 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

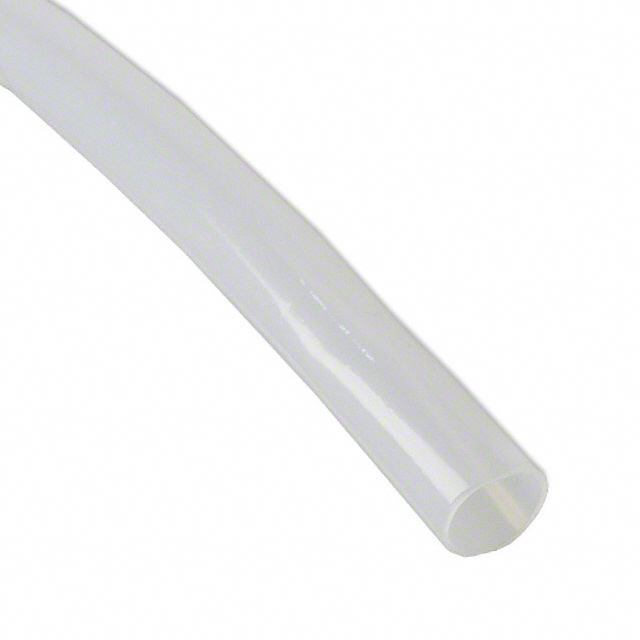

TUBING 0.114" ID PTFE 100' NAT
| Part | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Color | Heat Protection | Type | Liquid Protection | Type Attributes | Abrasion Protection | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Material | Material Flammability Rating | Environment Protection | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Wall Thickness | Wall Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.148 in | 3.76 mm | Natural | Heat Resistant | Solid Tubing | Oil Resistant | Smooth | Abrasion Resistant | 2.9 mm | 0.114 in | Polytetrafluoroethylene (PTFE) | UL94 V-0 | Corrosion Resistant | 100 ' | 30.48 m | -75 °C | 260 °C | 0.3 mm | 0.012 in | ||
ALPHA WIRE | 0.148 in | 3.76 mm | Natural | Heat Resistant | Solid Tubing | Oil Resistant | Smooth | Abrasion Resistant | 2.9 mm | 0.114 in | Polytetrafluoroethylene (PTFE) | UL94 V-0 | Corrosion Resistant | -75 °C | 260 °C | 0.3 mm | 0.012 in | 152.4 m | 500 ft |
