TRG30R120 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 30W

Part	No Load Power Consumption	Output Connector	Output Connector [diameter]	Output Connector [z]	Voltage - Output	Input Connector	Standard Number	Power (Watts)	Approval Agency	Input Type	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Form	Polarization	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]

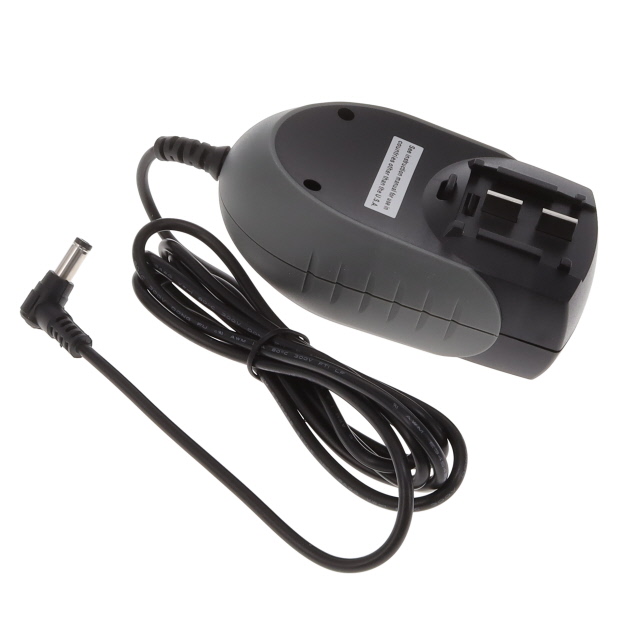

Cincon Electronics Co. LTD TRG30R120V-01E03-GY-BK VI	75 mW	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	12 V	Multi-Blade (Sold Separately)	60950-1	30 Watts	CE cULus FCC GS PSE TUV	Multi-Blade (Sold Separately)	International	264 VAC	90 VAC	Wall Mount	Positive Center	ITE (Commercial)	2.27 in	2.24 in	57.6 mm	33.5 mm	1.32 in	57 mm	70.9 "	1.8 m	CoC Tier 2 Level VI	2.5 A	-20 ░C	60 °C

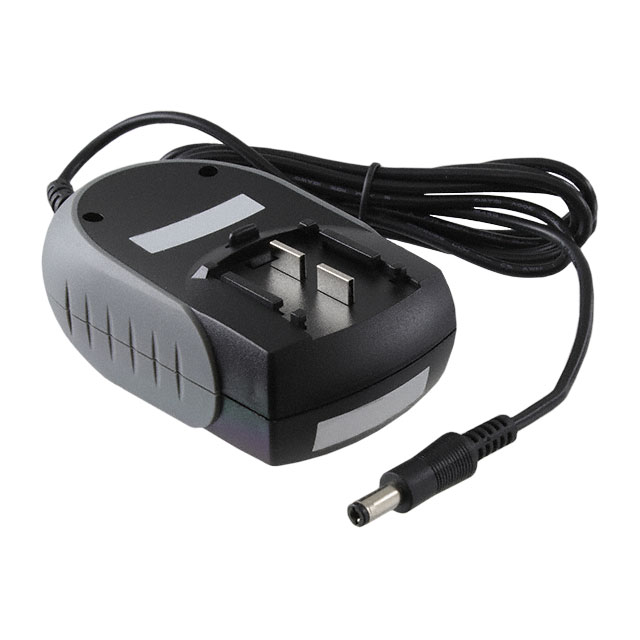

Cincon Electronics Co. LTD TRG30R120V-11E03-GY-BK VI	75 mW	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	12 V	Multi-Blade (Sold Separately)		30 Watts	CE cULus FCC GS PSE TUV	Multi-Blade (Sold Separately)	International	264 VAC	90 VAC	Wall Mount	Positive Center	ITE (Commercial)	2.27 in	4.24 "	57.6 mm	33.5 mm	1.32 in	107.8 mm	70.9 "	1.8 m	CoC Tier 2 Level VI	2.5 A	-20 ░C	60 °C	0.662 lb	300.28 g
