D09S90 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

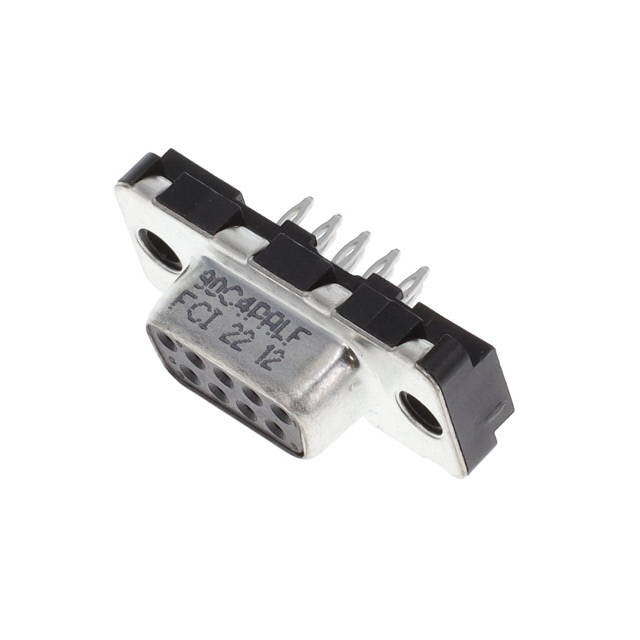

CONN D-SUB RCPT 9POS VERT PRESS
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Color | Connector Style | Voltage Rating | Number of Rows | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Contact Finish | Current Rating (Amps) | Number of Positions | Shell Material, Finish | Termination | Contact Material | Dielectric Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Steel Tin-Nickel Plated | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | |
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | ||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Steel Tin-Nickel Plated | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | |
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (M3) | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Flash | |||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Flash | |||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Steel Tin-Nickel Plated | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | |
 Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Steel Tin-Nickel Plated | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Flash | ||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | ||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (M3) | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) | ||
Amphenol ICC (FCI) | Through Hole | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Black | D-Sub | 300 VDC | 2 | UL94 V-0 | DE E | 1 | Signal | Gold | 5 A | 9 | Press-Fit | Phosphor Bronze | Polybutylene Terephthalate (PBT) |
