SURFACE MOUNT PRECISION ZENER DIODE
SURFACE MOUNT PRECISION ZENER DIODE
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Zener (Nom) (Vz) | Impedance (Max) (Zzt) [Max] | Power - Max [Max] | Voltage - Forward (Vf) (Max) @ If | Tolerance | Current - Reverse Leakage @ Vr | Supplier Device Package | Mounting Type | Qualification | Grade | Impedance (Max) (Zzt) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

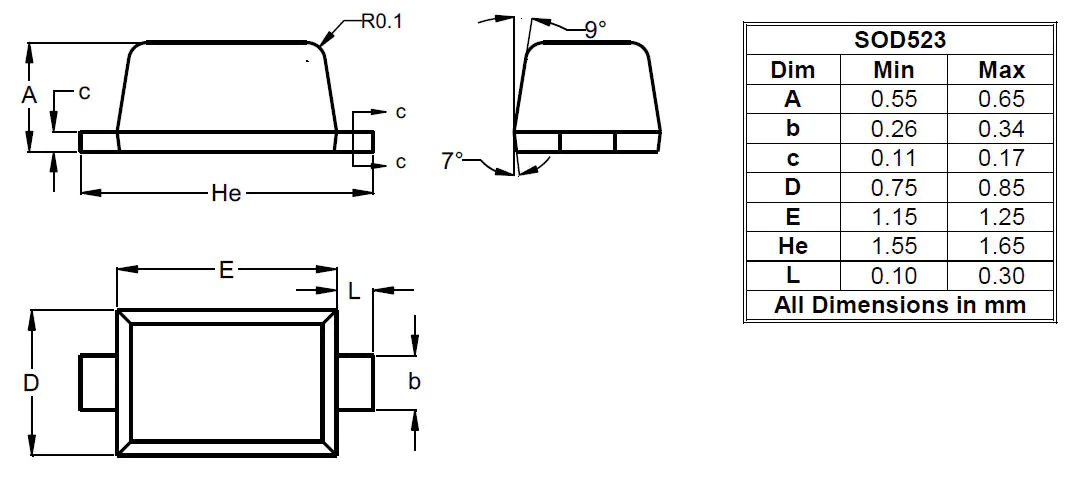

 Diodes Inc | SC-79 SOD-523 | -65 ░C | 150 °C | 5.6 V | 40 Ohms | 350 mW | 1.1 V | 2 % | 1 µA | SOD-523 | Surface Mount | |||
 Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 15 V | 15 Ohms | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | AEC-Q101 | Automotive | |
Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 43 V | 150 Ohms | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | |||
 Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 8.2 V | 350 mW | 1.1 V | 2 % | 700 nA | SOD-523 | Surface Mount | AEC-Q101 | Automotive | 10 Ohms | |
 Diodes Inc | SC-79 SOD-523 | -65 ░C | 150 °C | 13 V | 350 mW | 1.1 V | 2 % | 100 nA | SOD-523 | Surface Mount | AEC-Q101 | Automotive | 10 Ohms | |
Diodes Inc | SC-79 SOD-523 | -65 ░C | 150 °C | 18 V | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | ||||
Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 36 V | 90 Ohms | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | |||
Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 33 V | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | ||||
Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 39 V | 350 mW | 1.1 V | 2 % | 50 nA | SOD-523 | Surface Mount | AEC-Q101 | Automotive | ||
Diodes Inc | SC-79 SOD-523 | -65 °C | 150 °C | 13 V | 350 mW | 1.1 V | 2 % | 100 nA | SOD-523 | Surface Mount | AEC-Q101 | Automotive | 10 Ohms |
