RT6224 Series

Catalog

IC REG BUCK ADJ 3A TSOT23-6

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Supplier Device Package	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Function	Output Type	Number of Outputs	Topology	Current - Output	Mounting Type	Output Configuration	Voltage - Input (Max) [Max]	Frequency - Switching	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Main Purpose	Contents	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output
Richtek USA Inc. RT6224CHGJ6F	85 C	-40 ¯C	0.6 V	TSOT-23-6 (FC)	SOT-23-6 Thin TSOT-23-6	4.3 V	5 V	Step-Down	Adjustable	1	Buck	3 A	Surface Mount	Positive	18 V	1.4 MHz

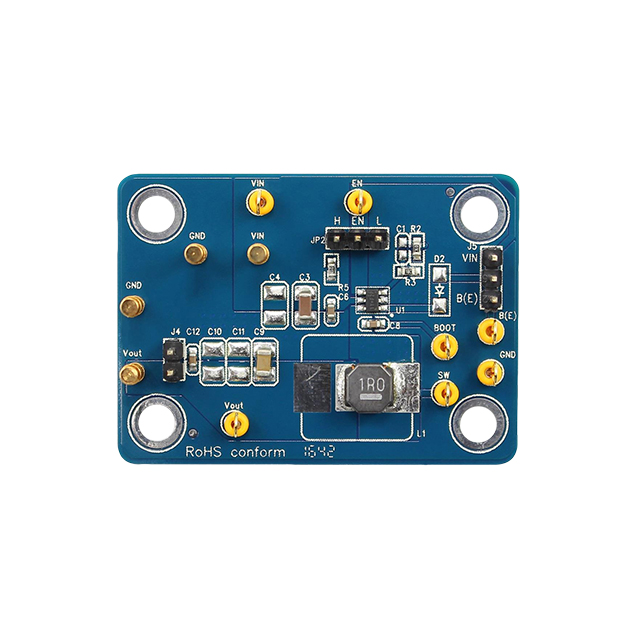

Richtek USA Inc. EVB_RT6224CHGJ6F												3 A				1.4 MHz	Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Buck	DC/DC Step Down	Board(s)	RT6224C	18 V	4.3 V	1 V
Richtek USA Inc. RT6224AHGJ6F	85 C	-40 ¯C	0.6 V	TSOT-23-6	SOT-23-6 Thin TSOT-23-6	4.3 V	18 V	Step-Down	Adjustable	1	Buck	3 A	Surface Mount	Positive	18 V	500 kHz
