D10AF Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

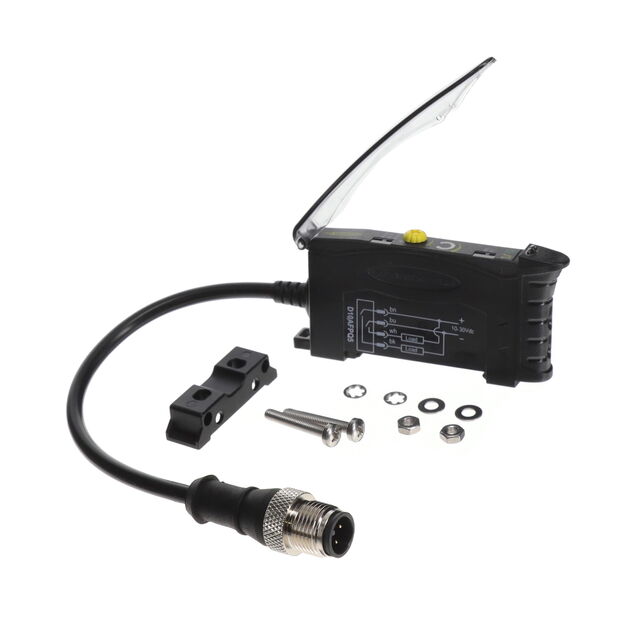

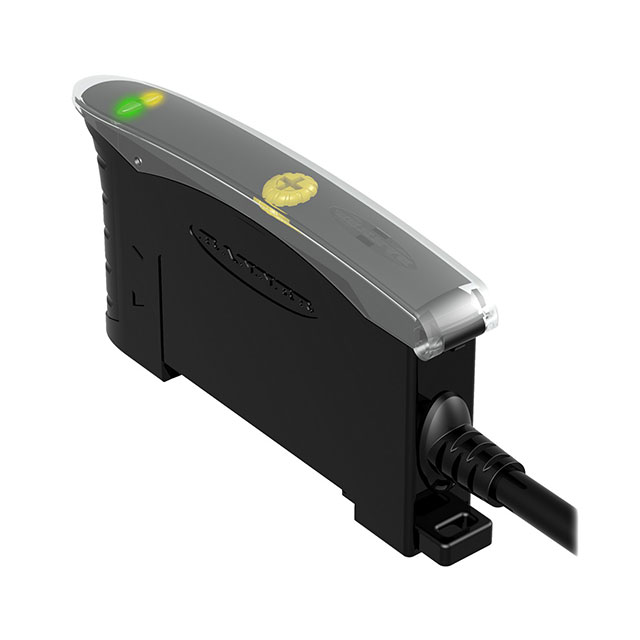

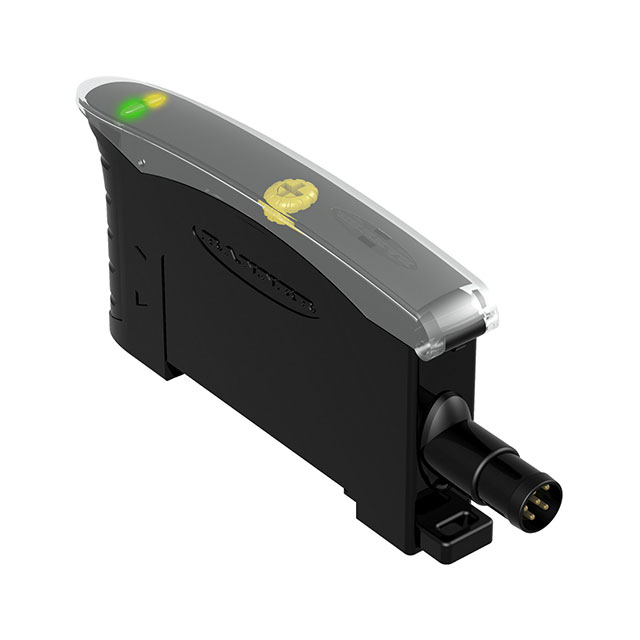

D10AFP SENSOR FOR USE WITH PLASTIC FIBER OPTICS
| Part | Ingress Protection | Sensing Method | Connection Method | Adjustment Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Light Source | Voltage - Supply [Min] | Voltage - Supply [Max] | Cable Length | Cable Length | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IP50 NEMA 1 IEC IP50 | Fiber Optic | Cable | Adjustable Potentiometer | 55 °C | -10 °C | NPN PNP | LED | 10 VDC | 30 VDC | 78.74 " | 2 m | 500 µs |
 BANNER ENGINEERING | IP50 NEMA 1 IEC IP50 | Fiber Optic | Cable | 12-Turn Potentiometer Adjustable | 55 °C | -20 ░C | NPN PNP | Red (660nm) | 10 VDC | 30 VDC | 78.74 " | 2 m | 200 µs |
 BANNER ENGINEERING | IP50 NEMA 1 IEC IP50 | Fiber Optic | Connector M12 | 12-Turn Potentiometer Adjustable | 55 °C | -20 ░C | NPN PNP | Red (660nm) | 10 VDC | 30 VDC | 500 µs | ||
 BANNER ENGINEERING | IP50 NEMA 1 IEC IP50 | Fiber Optic | Connector | Adjustable Potentiometer | 55 °C | -10 °C | NPN PNP | LED | 10 VDC | 30 VDC | 500 µs |
