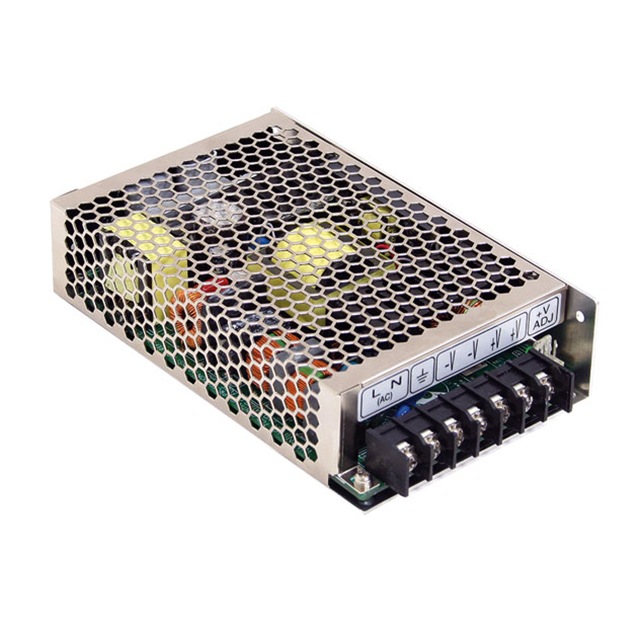

HRP-150 Series

Catalog

AC/DC CONVERTER 48V 158W

Part	Applications	Efficiency	Type	Current - Output 1	Number of Outputs	Features	Approval Agency	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1	Mounting Type	Standard Number	Voltage - Output 1 [custom]
MEAN WELL USA Inc. HRP-150-48	ITE (Commercial)	89 %	Enclosed	3.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	158 W	48 V	Chassis Mount
MEAN WELL USA Inc. HRP-150-3.3	ITE (Commercial)	78.5 %	Enclosed	30 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	99 W	3.3 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-12	ITE (Commercial)	88 %	Enclosed	13 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	156 W	12 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-5	ITE (Commercial)	85 %	Enclosed	26 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	130 W	5 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-36	ITE (Commercial)	89 %	Enclosed	4.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	155 W		Chassis Mount	62368-1	36 V
MEAN WELL USA Inc. HRP-150-12	ITE (Commercial)	88 %	Enclosed	13 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	156 W	12 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-48	ITE (Commercial)	89 %	Enclosed	3.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	158 W	48 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-24	ITE (Commercial)	88 %	Enclosed		1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	156 W	24 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-24	ITE (Commercial)	88 %	Enclosed		1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	156 W	24 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-15	ITE (Commercial)	88 %	Enclosed	10 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	150 W	15 V	Chassis Mount
