LDC-35 Series

Catalog

LED DRIVER CC AC/DC 27-56V 1A

Part	Mounting Type	Voltage - Input (Max) [Max]	Topology	Voltage - Isolation	Features	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Number of Outputs	Efficiency	Type	Termination Style
MEAN WELL USA Inc. LDC-35B	Chassis Mount	295 VAC	AC DC Converter	3750 VDC	OTP OVP SCP	180 VAC	CB CCC CE cURus	1 A	300 mA	1.18 "	280 mm	21 mm	30 mm	0.83 "	11.02 in	56 V	27 V	35 W	-25 °C	80 °C	Analog PWM	1	88 %	Constant Current	Terminal Block

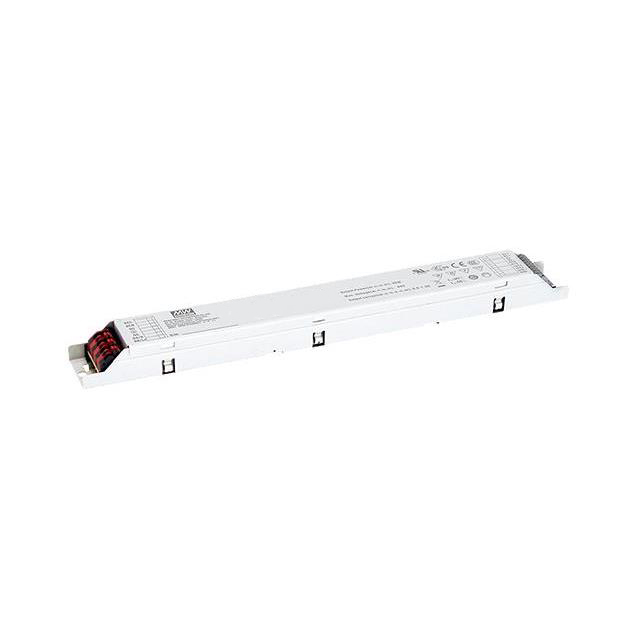

MEAN WELL USA Inc. LDC-35DA	Chassis Mount	295 VAC	AC DC Converter	3750 VDC	OTP OVP SCP	180 VAC	CB CCC CE cURus	1 A		1.18 "	280 mm	21 mm	30 mm	0.83 "	11.02 in	56 V	27 V	35 W	-25 °C	80 °C	DALI	1	88 %	Constant Current	Terminal Block
