5977703 Series

Manufacturer: DIALIGHT

Catalog

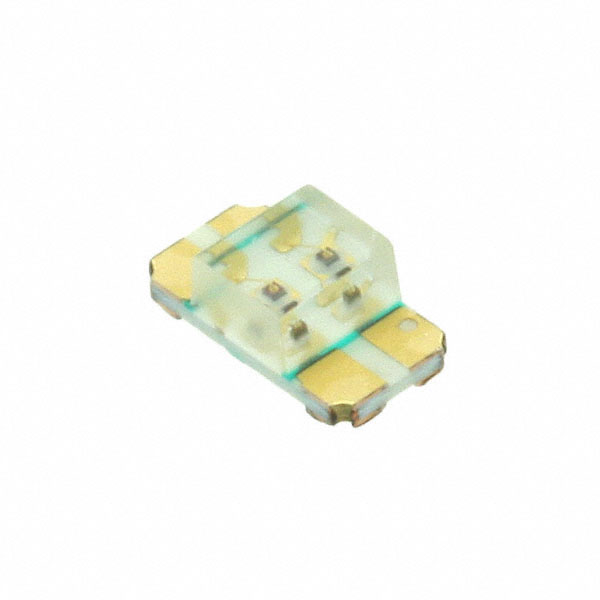

LED GREEN/RED CLEAR 1206 SMD

Part	Lens Style	Current - Test [custom]	Current - Test [custom]	Package / Case	Wavelength - Dominant	Mounting Type	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Configuration	Lens Color	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Size [y]	Lens Size [x]	Viewing Angle	Color	Millicandela Rating	Lens Transparency
DIALIGHT 5977703602F	Rectangle with Flat Top	20 mA	20 mA	1206 (3216 Metric)	571 nm 631 nm	Surface Mount Bottom Entry	2 V 2 V	1.1 mm	Independent	Colorless	574 nm 639 nm	1.6 mm	3.2 mm	1206	1.6 mm	1.5 mm	130 °	Green Red	45 mcd 55 mcd	Clear
DIALIGHT 5977703607F	Rectangle with Flat Top	20 mA	20 mA	1206 (3216 Metric)	571 nm 631 nm	Surface Mount Bottom Entry	2 V 2 V	1.1 mm	Independent	Colorless	574 nm 639 nm	1.6 mm	3.2 mm	1206	1.6 mm	1.5 mm	130 °	Green Red	45 mcd 55 mcd	Clear
