LCD500 Series
Manufacturer: Panduit Corp
Beta
⌘K

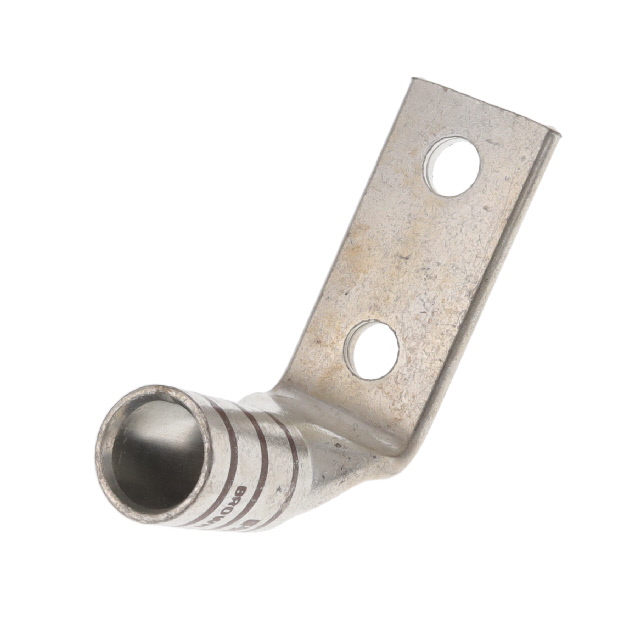

CONN TERM RECT TONG 500 MCM #1/2
| Part | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Wire Gauge | Wire Gauge | Contact Material | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Finish | Color | Termination | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Tab Thickness | Tab Thickness | Insulation | Terminal Type | Terminal Style | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Free Hanging (In-Line) Right Angle | 39.12 mm | 1.54 " | 500 kcmil | 500 kcmil | Copper | 26.92 mm | 1.06 in | Electro-Tin | Brown | Barrel Crimp | 0.53 in | 13.46 mm | 5.59 mm | 0.22 in | Non-Insulated | Rectangular Tongue | Two Stud Holes | 1/2 Stud |
